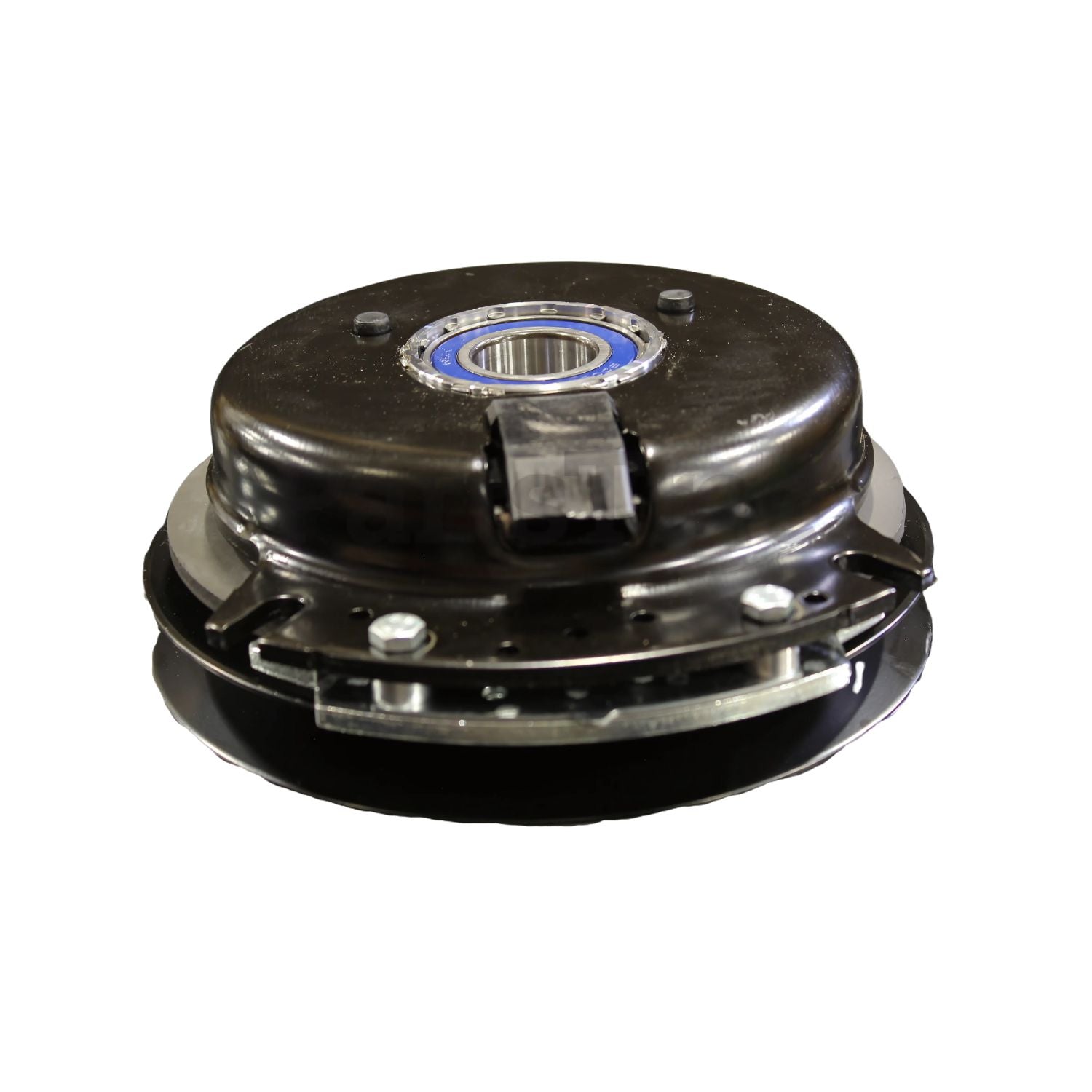

Toro PTO Clutch 131-1100 For Select GrandStand Models (OEM Replacement)

$289.95

OEM replacement clutch for specific Toro GrandStand Models.

Replaces Toro part number 131-1100.  This is not an aftermarket electric clutch.

The primary application for this clutch is Toro GrandStand models manufactured in 2016 although it may also be used on other Toro models.

Please make sure your Toro model uses clutch part number 131-1100 to verify this is the correct clutch for your specific mower.

OEM Clutch used on Toro GrandStand Model Numbers:

  • 75404 (48" decks)
  • 74505 (52" decks)
  • 74513 (60" decks)
  • 74518 (48" decks)
  • 74519 (52" decks)
  • 74523 (60" decks)
  • 74529 (52" decks)
  • 79504 (48" decks)

Technical Specifications:

  • Function: Clutch / Brake
  • Voltage: 12 VDC
  • Rated Torque (lb-ft):200
  • Rotation: CCW
  • Current Draw (Amps): 6.53
  • Resistance (Ohms): 1.84
  • Connection Type: integral
  • Pulley/Flange OD (in): 7.56
  • Bore Diameter (in): 1.125
  • Mounting: Standard
  • Weight (lbs): 12.7
  • Cable Accessory: Not included

OEM Replacement PTO Clutch for Toro Part Number:

  • 131-1100

Have a question about this product? Contact us for assistance and tell us you are looking at SKU 5218-349.  This is an authentic Warner Electric PTO Clutch.  Warner is the OEM supplier of lawn mower clutches for 80% of the lawn mower manufacturers.
