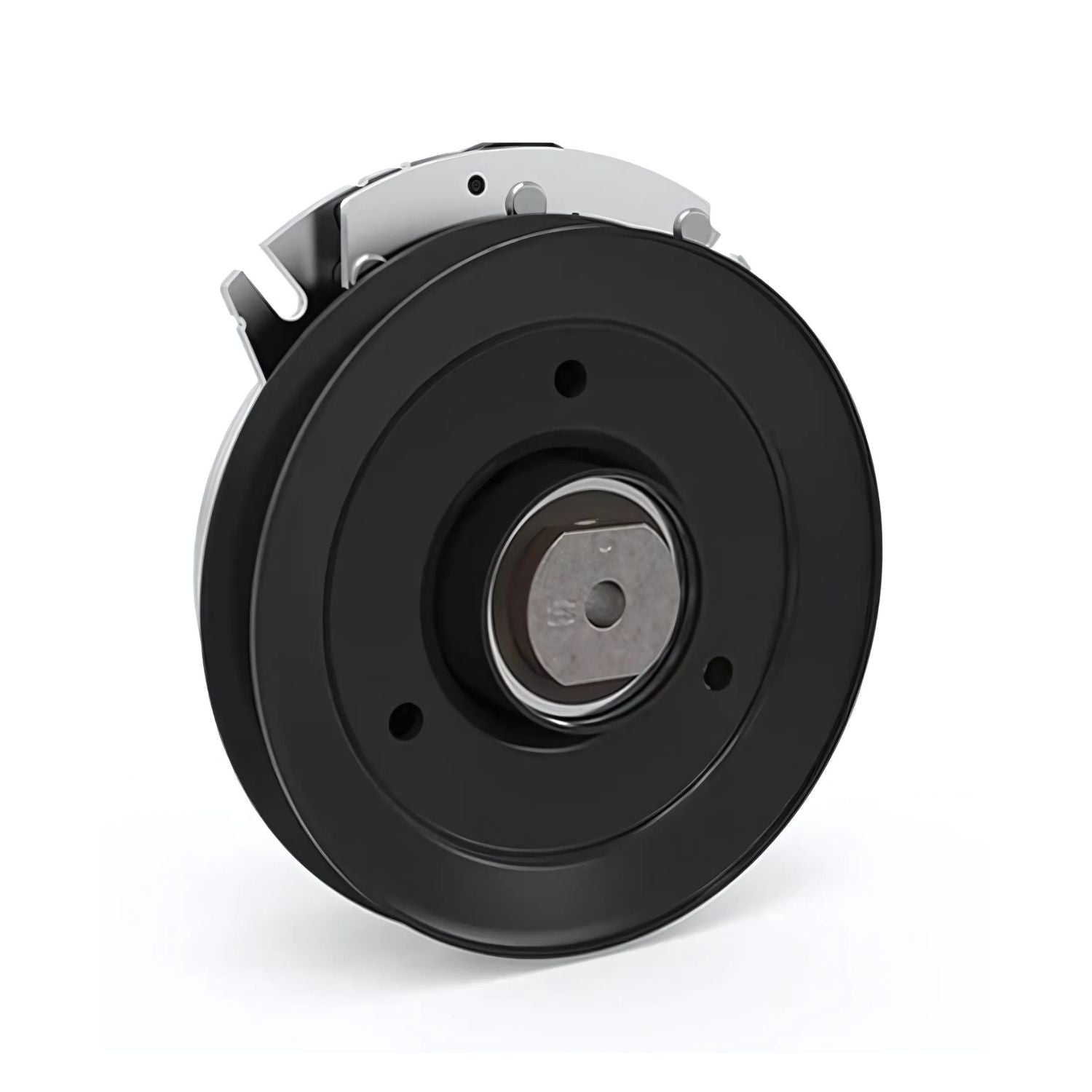

Dixie Chopper 500012 OEM PTO Clutch

$279.95

OEM replacement clutch with wiring pigtail for Dixie Chopper part number 500012.

Technical Specifications:

  • Function: Clutch / Brake
  • Voltage: 12 VDC
  • Rated Torque (lb-ft):200
  • Rotation: CCW
  • Current Draw (Amps): 6.53
  • Resistance (Ohms): 1.84
  • Connection Type: integral
  • Pulley/Flange OD (in): 7.39
  • Bore Diameter (in): 1.125
  • Mounting: Standard
  • Weight (lbs): 12.5
  • D-drive Number: 807-0168 included with this clutch/brake
  • Cable Accessory: 5218-251-001 included with this clutch/brake

OEM Replacement PTO Clutch for Dixie Chopper Part Number:

  • 500012

Have a question about this product? Contact us for assistance and tell us you are looking at SKU 5218-253-DC.  This is an authentic Warner Electric PTO Clutch.  Warner is the OEM supplier of lawn mower clutches for 80% of the lawn mower manufacturers.
