Dixie Chopper PTO Clutch 500067 Select Iron Eagle & Magnum Models (OEM Electric 5.5”)

$334.95

OEM replacement clutch for Dixie Chopper part number 500067.

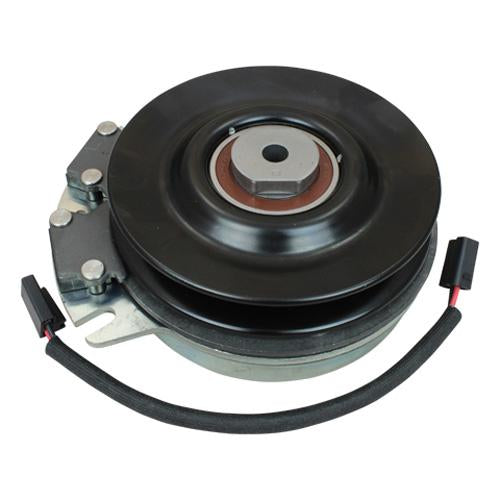

It comes with the wiring pigtail as shown.  This is the OEM replacement made by Warner.

Please refer to your parts diagram to match part numbers and verify the fitment.

This clutch fits most Dixie Chopper models listed below and others using P/N 500067:

  • 2044 (2008)
  • 2344 (2009)
  • 2344 (2010)
  • 2344 (2011)
  • 2350 (2008)
  • 2350 (2009)
  • 2350 (2010)
  • 2560 (2008)
  • 2560 (2009)

Warner 5218-250 Technical Specifications:

  • Voltage:  12 VDC
  • Rated Torque (lb-ft): 200
  • Rotation: CCW
  • Current Drw (Amps): 6.53
  • Resistance (Ohms): 1.84
  • Connection Type: integral
  • Pulley/Flange OD (in): 6 (5.5" Belt Ride)
  • Bore Diameter (in): 1
  • Mounting: Standard
  • Weight (lbs): 11.8
  • D-Drive Number: 807-0144 included with this clutch/brake
  • Cable Accessory: 5218-251-001 included with this clutch/brake
