Hustler Spindle Kit 604214 SPINDLE ASSY, RAP/ALP Excel P/N: 604214

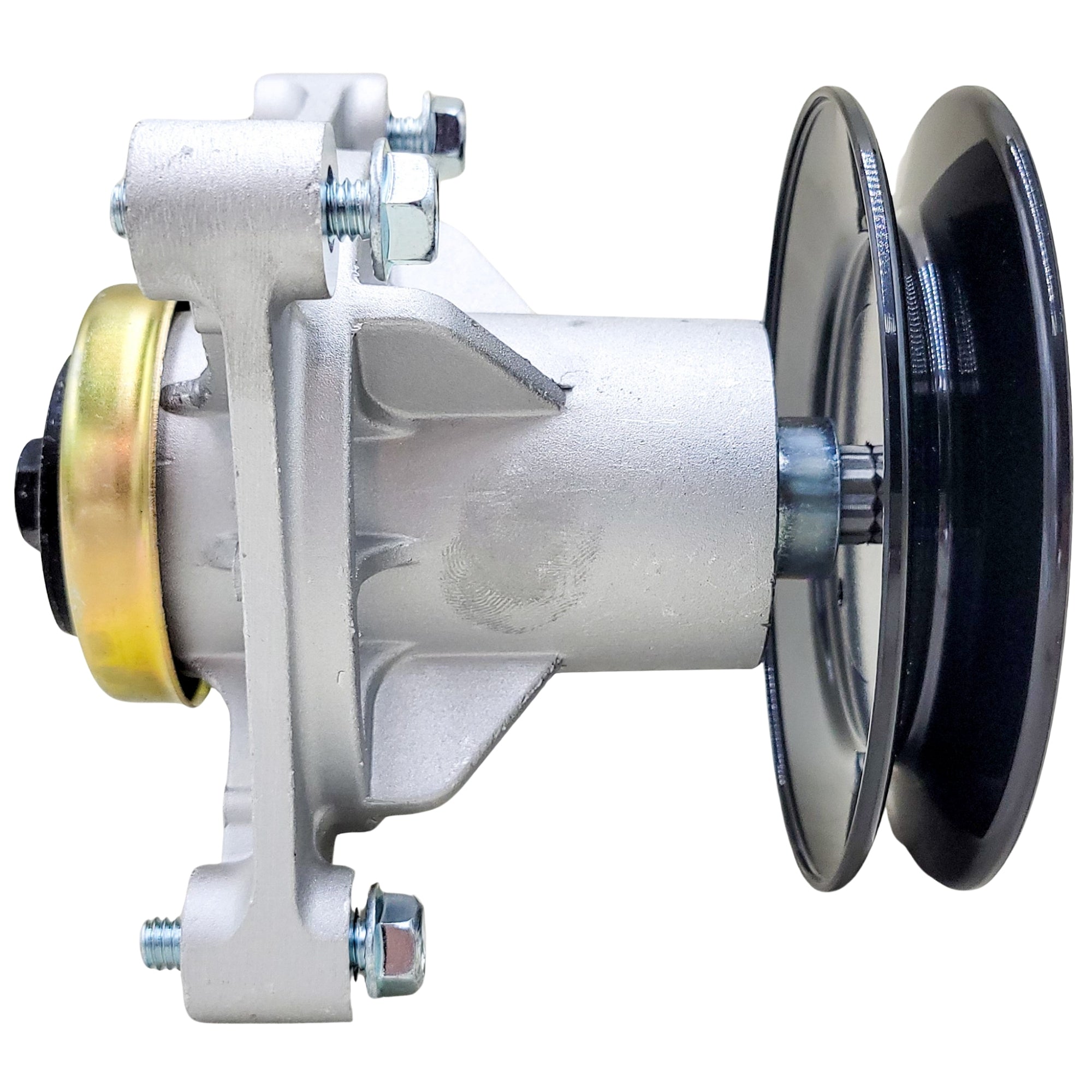

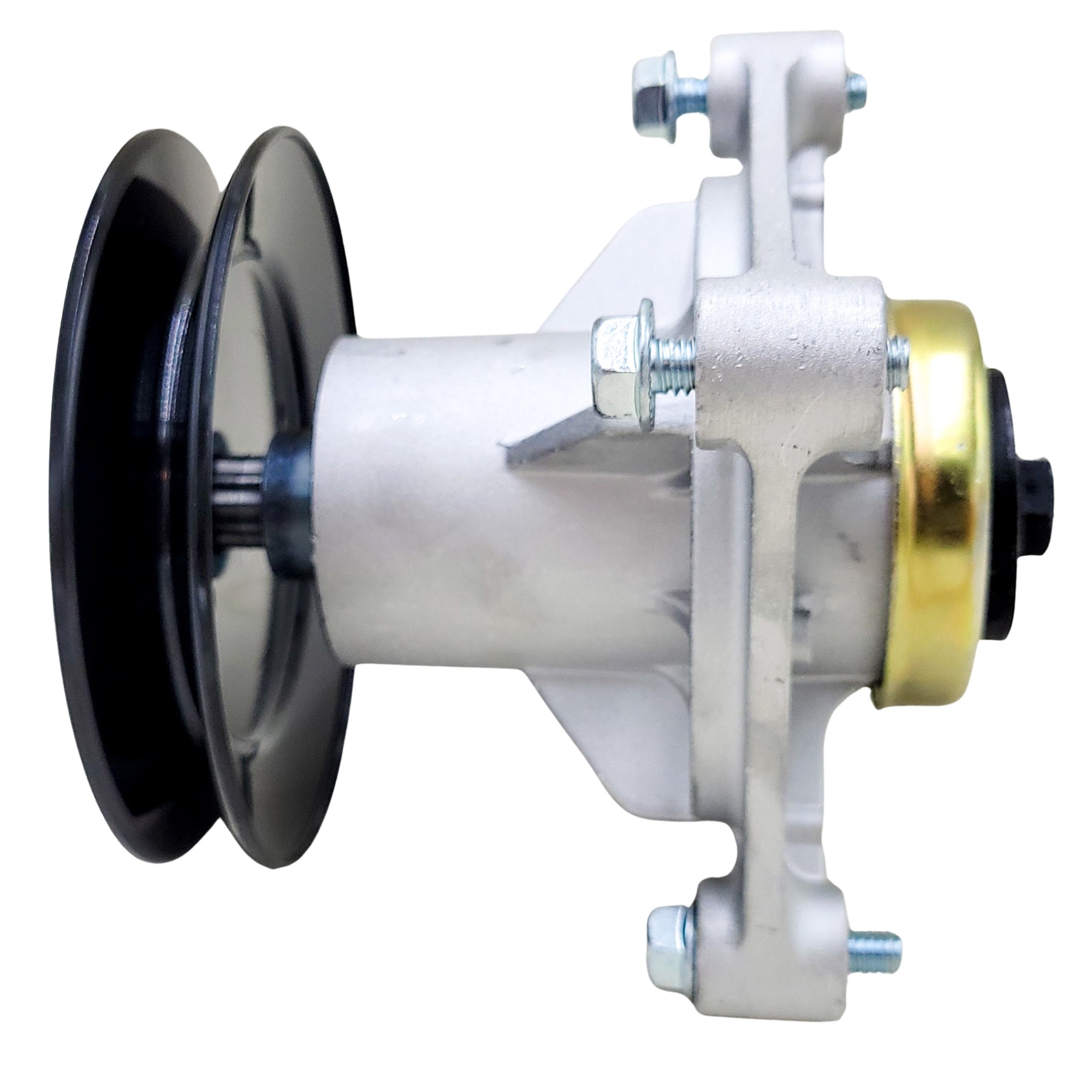

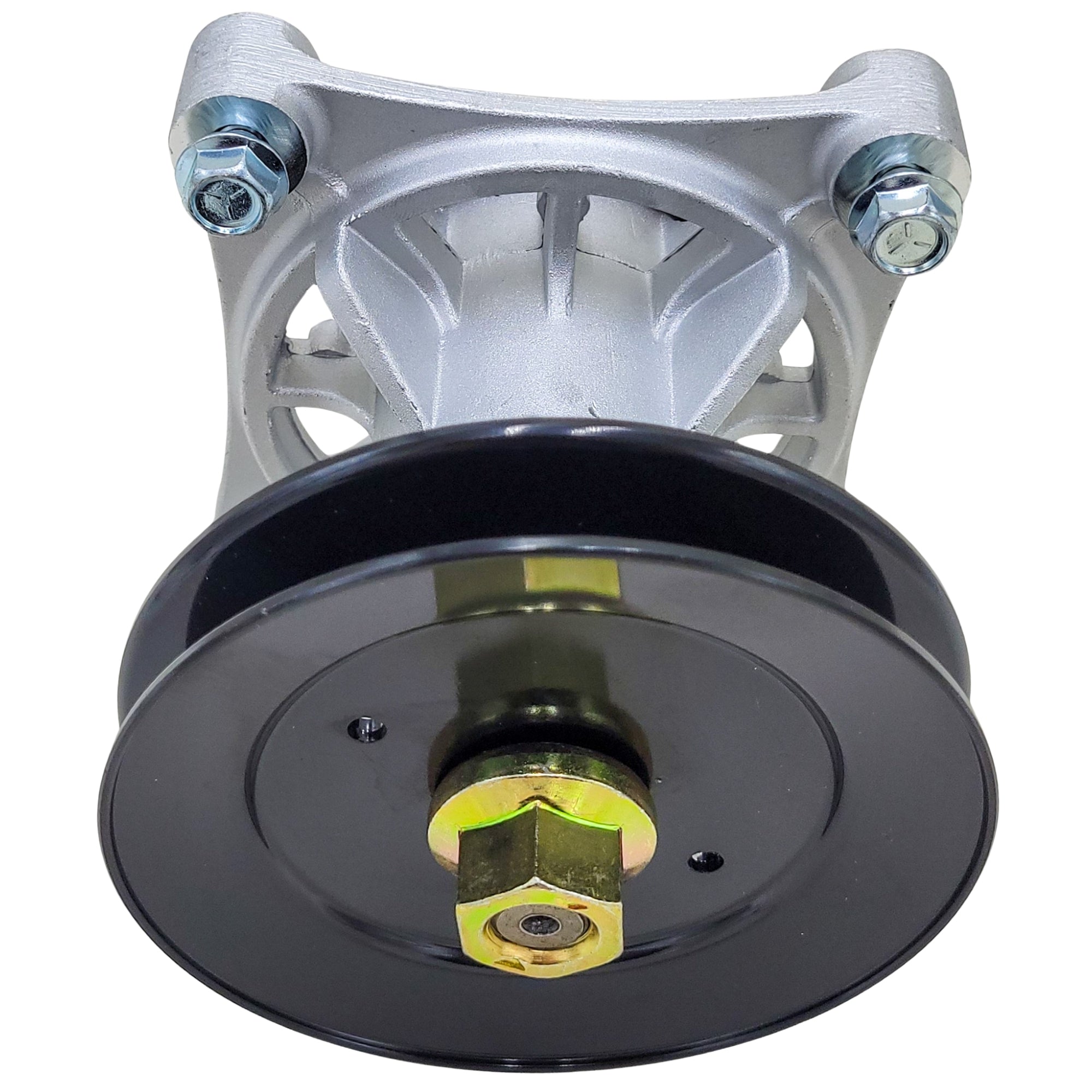

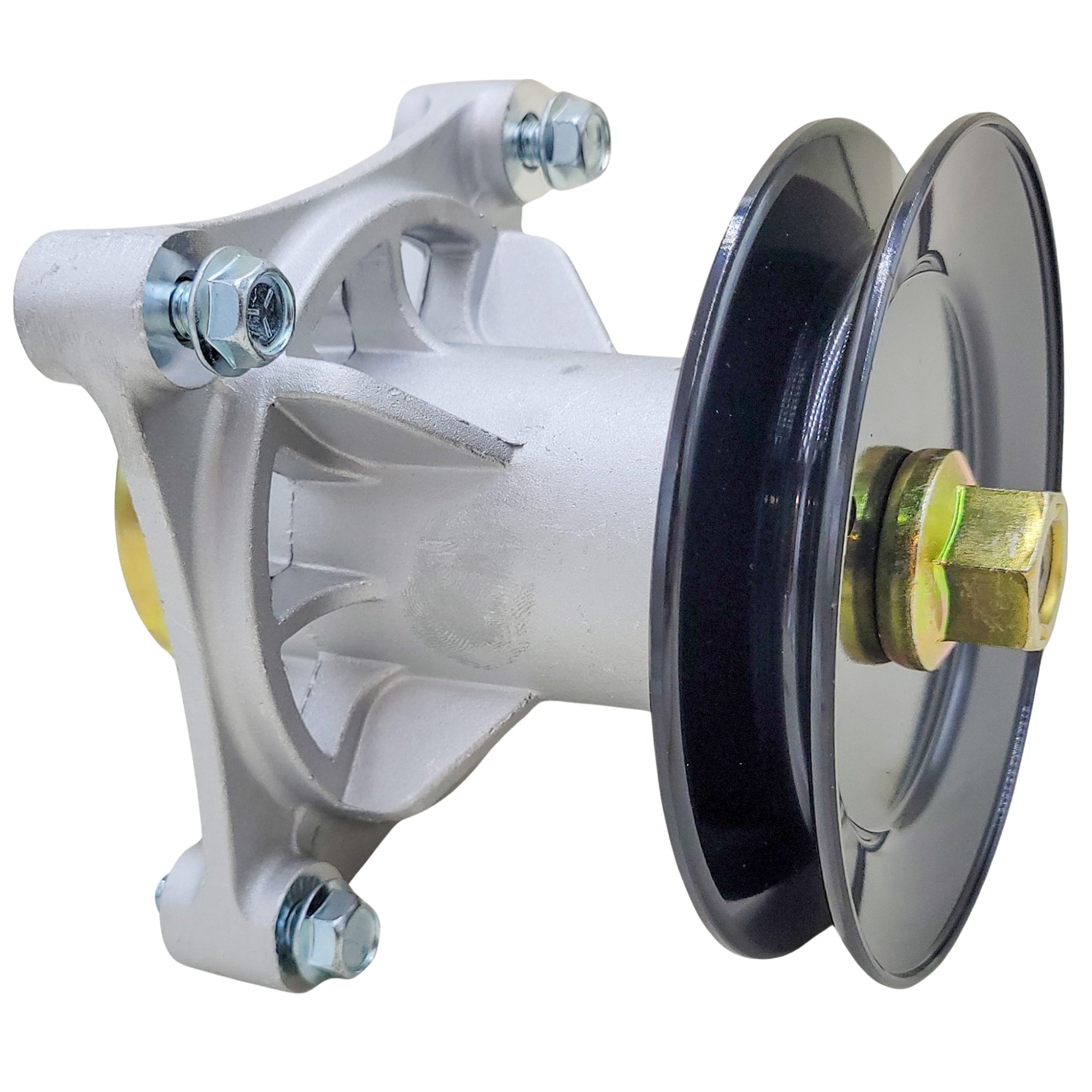

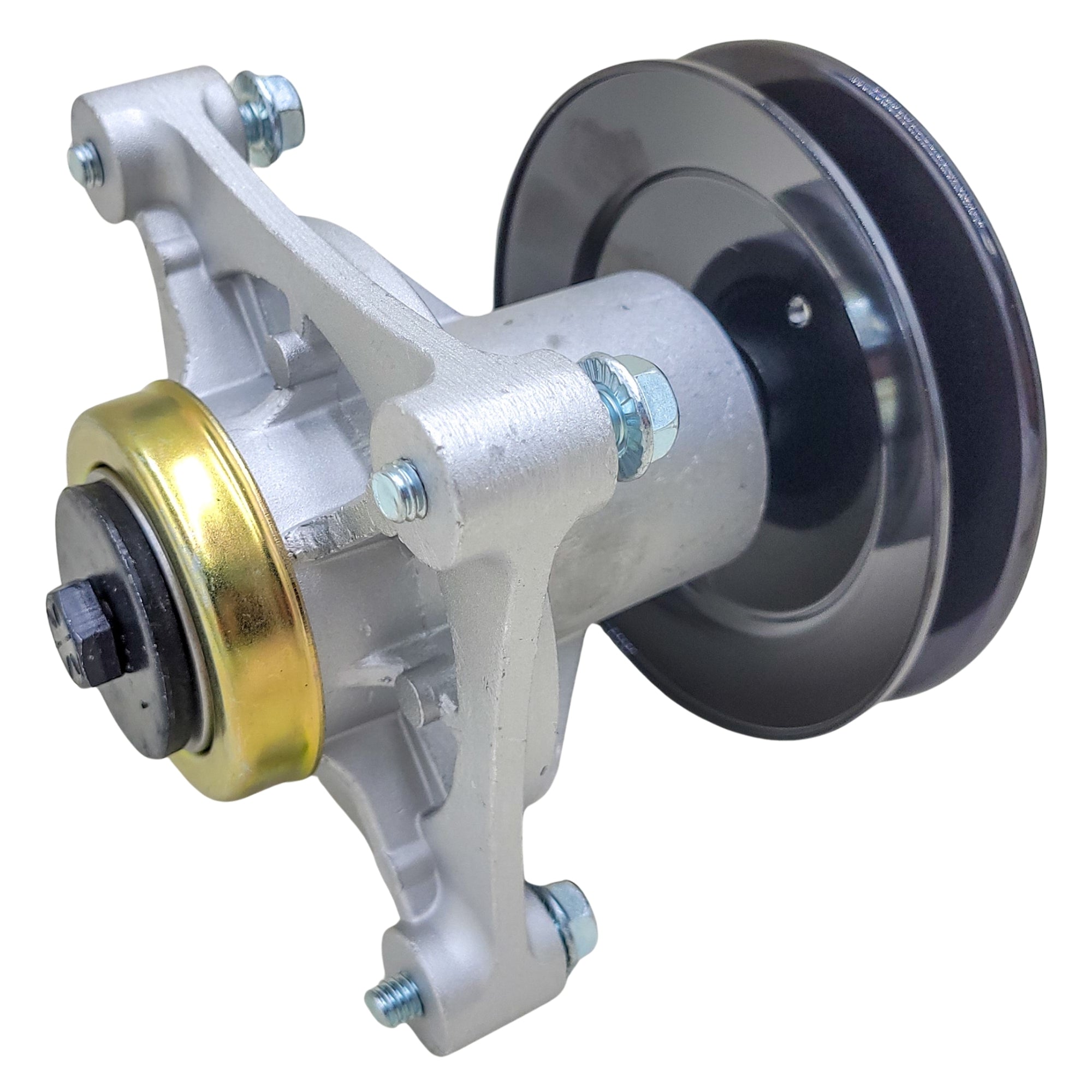

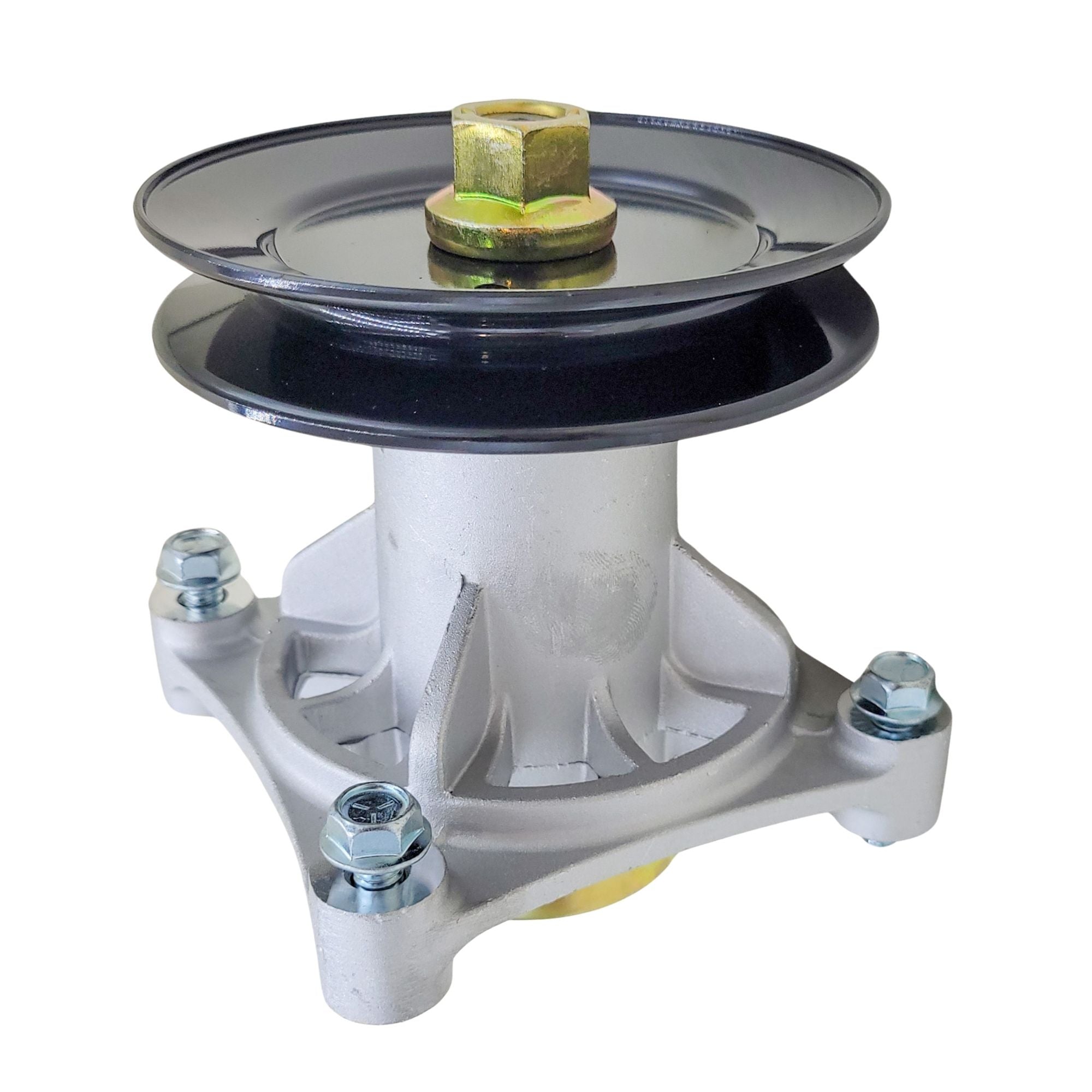

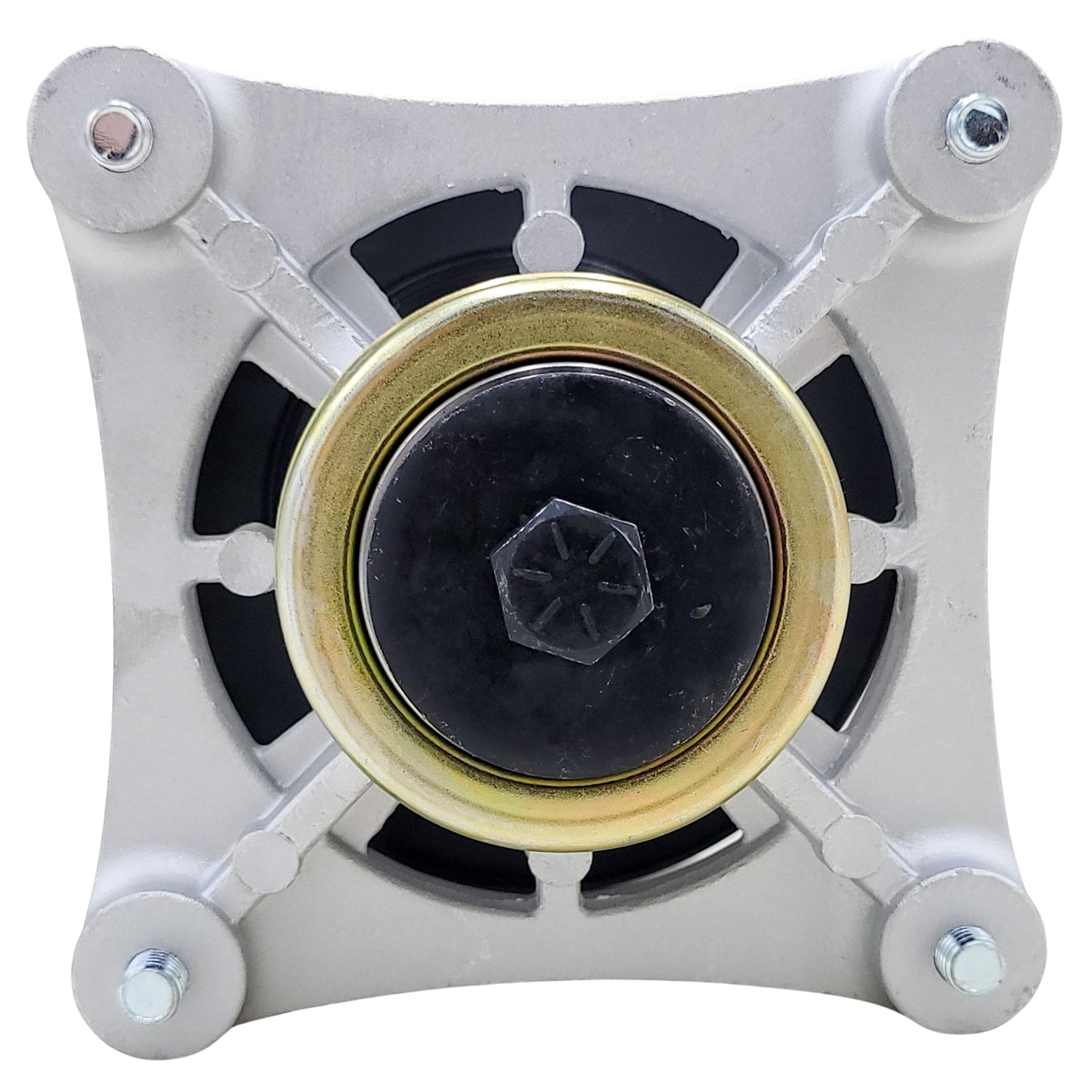

Replacement spindle assembly for Hustler/Excel P/N 604214. The mounting bolts, blade bolt and washer, *pulley, and pulley nut are included with this assembly.
Fits some, but not all, Hustler Raptor, Hustler Dash & Hustler Surfer Pro models. Please reference the full list of model numbers where this spindle assembly is used below.
*The pulley included in this assembly is Hustler part number 603988 ("B-Section" Drive Pulley). It is specific to 52" Raptor models. It is a very similar spec pulley to the pulleys used on this spindle assembly for 34" and 42" Hustlers but you may need to reuse or purchase the correct pulley if you use this assembly on 34" and 42" Hustlers.
604214 Fits Which Models?
- 34" Hustler Dash Model Number 938480
- 34" Hustler Dash XD Model Number 940742
- 34" Hustler Dash XD Model Number 940742CE
- 34" Hustler Dash XD Model Number 940742EX
- 34" Hustler Surfer Pro Model Number 941591
- 36" Hustler Raptor Model Number 935734
- 36" Hustler Raptor Model Number 935767US
- 36" Hustler Raptor Model Number 938159
- 36" Hustler Raptor Model Number 938563
- 36" Hustler Raptor Model Number 939389
- 42" Hustler Dash Model Number 938498
- 42" Hustler Dash XD Model Number 940759
- 42" Hustler Dash XD Model Number 940759CE
- 42" Hustler Dash XD Model Number 940759EX
- 42" Hustler Raptor Model Number 933937
- 42" Hustler Raptor Limited Model Number 938977
- 42" Hustler Raptor Model Number 934505US
- 42" Hustler Raptor Model Number 934786
- 42" Hustler Raptor Model Number 935742
- 42" Hustler Raptor Model Number 937748
- 42" Hustler Raptor Model Number 937847
- 42" Hustler Raptor Model Number 938167
- 42" Hustler Raptor Model Number 938571
- 42" Hustler Raptor Model Number 938589
- 42" Hustler Raptor Model Number 939108EX
- 42" Hustler Raptor Model Number 939215
- 48" Hustler Dash XD Model Number 940767
- 48" Hustler Dash XD Model Number 940767EX
- 48" Hustler Surfer Pro Model Number 941617
- 52" Hustler Raptor Limited Model Number 934802
- 52" Hustler Raptor Limited Model Number 936492
- 52" Hustler Raptor Limited Model Number 936500
- 52" Hustler Raptor Limited Model Number 937771
- 52" Hustler Raptor Limited Model Number 937862
- 52" Hustler Raptor Limited Model Number 938613
- 52" Hustler Raptor Model Number 934513US
- 52" Hustler Raptor Model Number 934794
- 52" Hustler Raptor Model Number 935759
- 52" Hustler Raptor Model Number 935817
- 52" Hustler Raptor Model Number 937755
- 52" Hustler Raptor Model Number 937763
- 52" Hustler Raptor Model Number 937813
- 52" Hustler Raptor Model Number 937854
- 52" Hustler Raptor Model Number 938597
- 52" Hustler Raptor Model Number 938605
- 52" Hustler Raptor Model Number 939116EX
- 52" Hustler Raptor Model Number 939165
- 52" Hustler Raptor Model Number 939223
Replaces OEM Part Number:
- Hustler 604214
For the spindle housing only, see Hustler 604218 Blade Spindle Housing.
For the spindle shaft only, see Hustler 607274 Spindle Shaft.
Have a question about this product? Contact us for assistance and tell us you are looking at SKU LC-Hustler-604214.
