Exmark Sulky Wheel & Tire Replaces P/N 103-9591 (Flat-Free w/ Grease Fitting)

$84.95

We created a greasable flat-free wheel and tire assembly to replace Exmark Part Number 103-9591 which is used on some 1-wheel Exmark brand lawn mower sulkies.  It is also used on some lawn mower models as well.

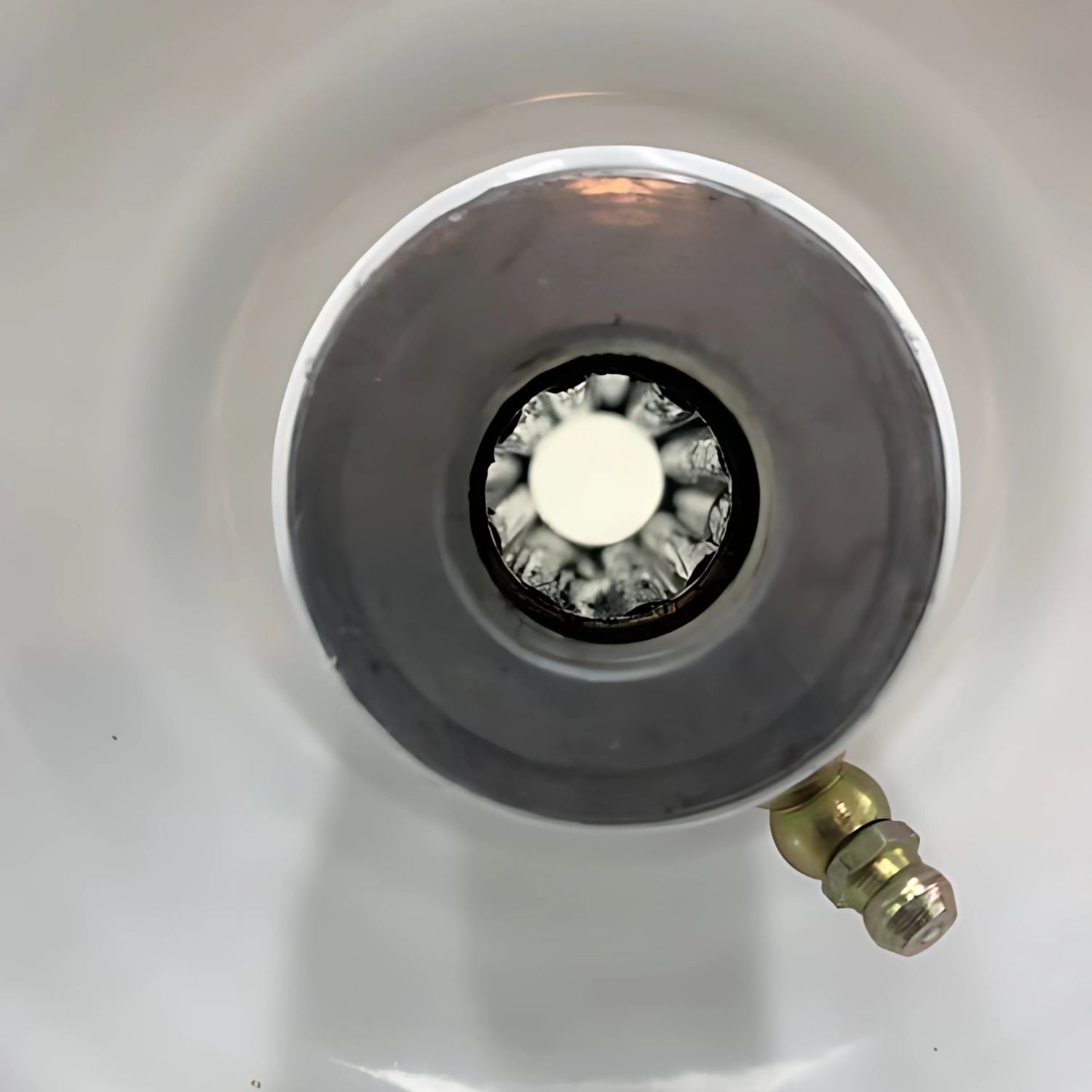

This aftermarket replacement has a grease fitting and uses a roller cage bearing inside of the hub.

We include the spanner bushing.

All of the dimensions of this assembly match the OEM specifications making it a perfectly acceptable replacement option.

Specs and Dimensions:

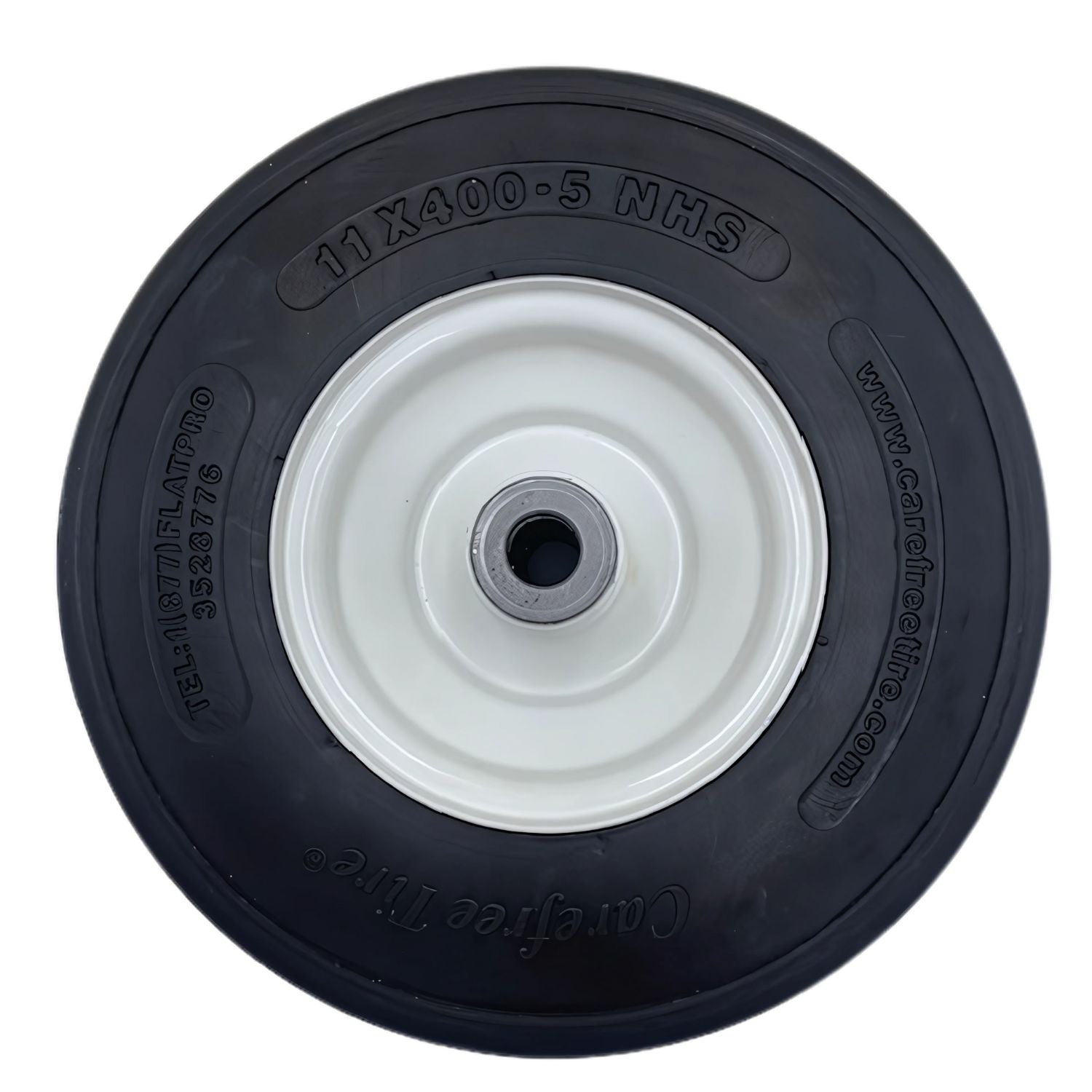

  • 11x4.00-5 Carefree Flat-Free Tire with Smooth Tread

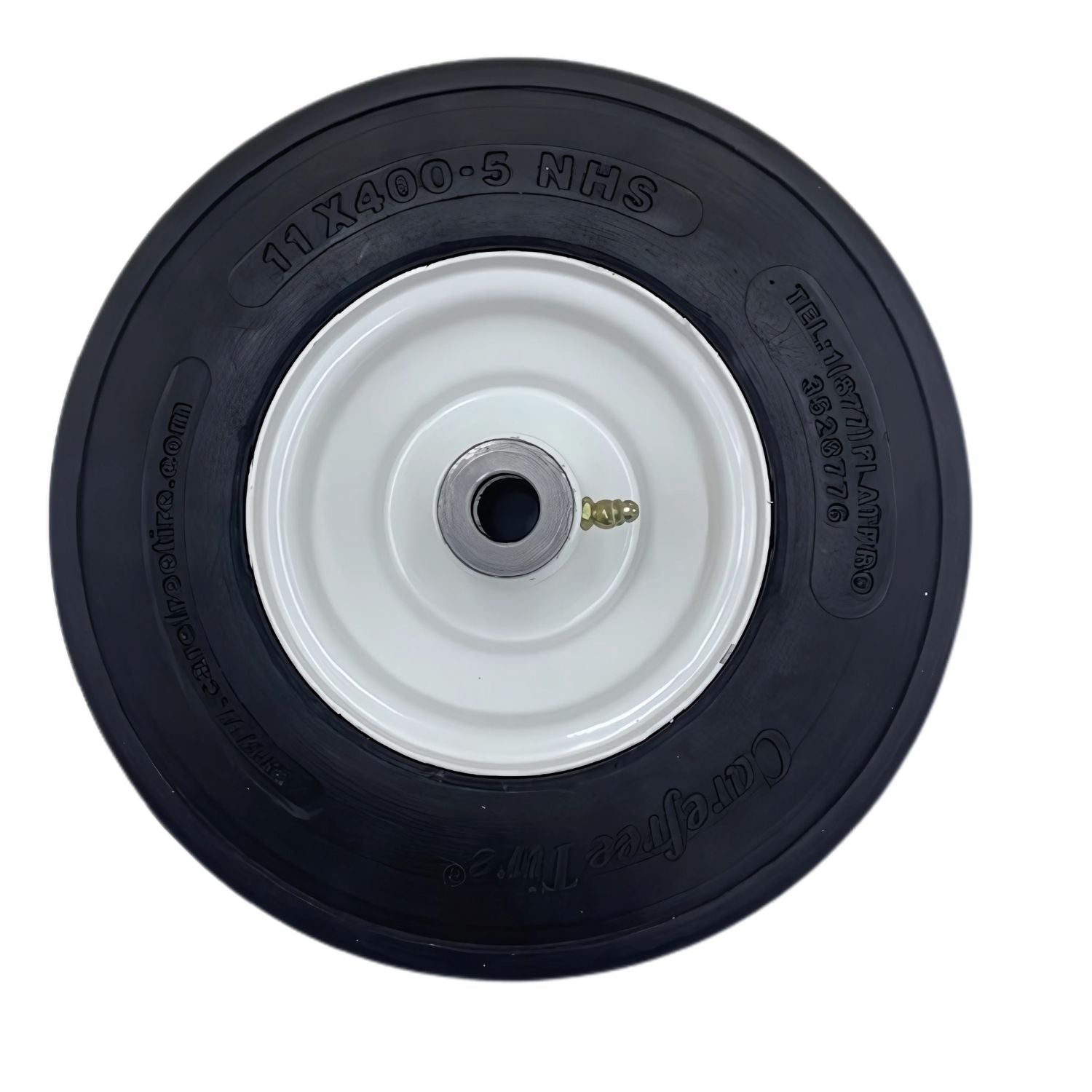

  • 4-1/2" Centered Hub with Roller Cage Bearing & Grease Zerk Fitting

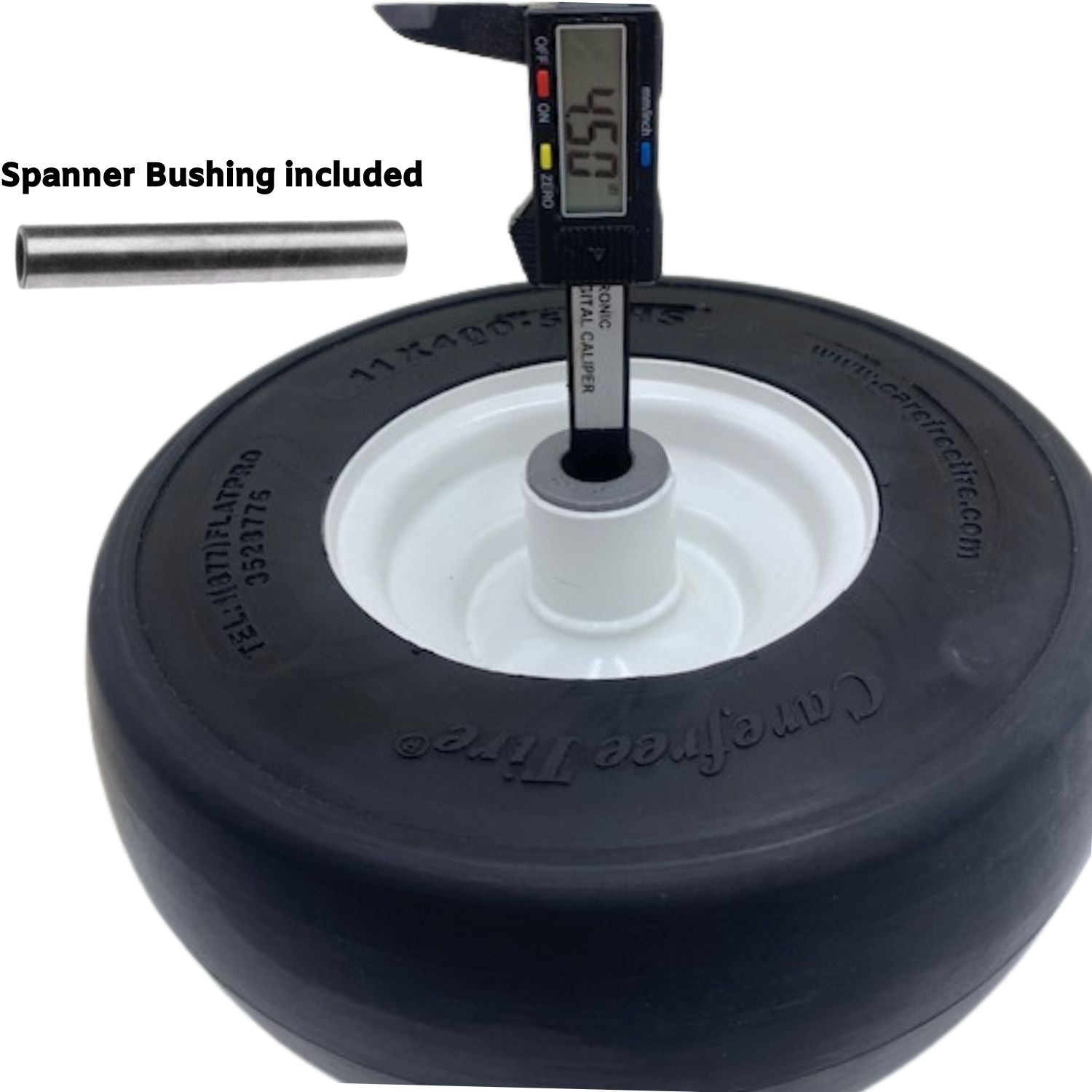

  • 1/2" Final I.D. (Bore) (The spanner bushing that is included reduces the ID from 3/4" to 1/2" to accept the axle bolt.)

Compatible with the following Exmark Sulkies:

  • Exmark Sulky (SN: 790000 - 849999) (2009)
  • Exmark Sulky (SN: 670000 - 789999) (2007)
  • Exmark Sulky for EZ Riders (SN: 510000 - 599999) (2005)
  • Exmark Sulky (SN: 850000 - 919999) (2010)
  • Exmark Sulky (SN: 510000 - 599999) (2005)
