Scag Wheel Assembly Set 481551 13x5.00-6 Flat-Free with Scag Wheel Sleeve 43430

Flat-free front caster wheel set with sleeves used on many Scag lawn mower models, such as the original Turf Tiger, Tiger Cub, and Saber Tooth Tiger.

Confirm your model, serial number, and deck width match wheel assembly part number 481551 and sleeve part number 43430.

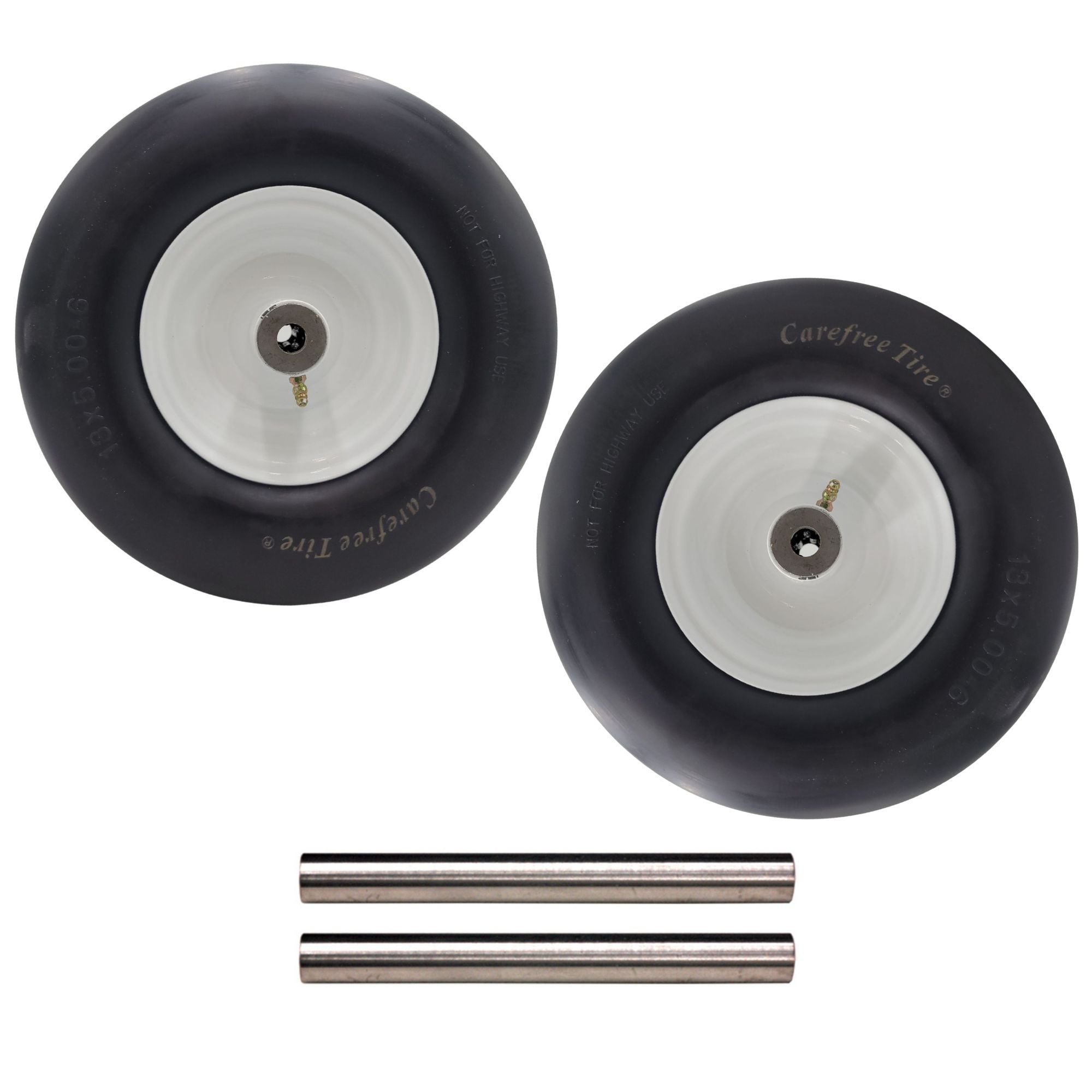

This listing is for 2 wheel and tire assemblies and 2 sleeves (spanner bushings).

These rims are white as shown, but they are OEM-quality with proven Carefree flat-free tires, including sleeves for the wheel hubs, and cost less than the air-filled version.

This listing includes:

• (2) Wheel & tire assemblies (Tire installed on the rim, bushings pressed in with roller cage bearings inside the hubs & a grease zerk fitting)
  • Replaces Scag part number 481551
• (2) Sleeves (Spanner bushings / Wheel spacers) Replaces
  • Scag part number 43430

The hub length is 6 inches long with a 5/8" inner diameter to accept the spanner bushing, which is included. The sleeve reduces the ID from 5/8" to 1/2" to accept the wheel axle bolt.

We have a model fitment guide below for your reference.

Replaces OEM Part Number:

• Scag 481551

Dimensions:

• Bore: 5/8"
• Hub Length: 6"
• Tread: Smooth
• Tire Type: Flat-Free (PU Foam)
• Tire Brand: Carefree
• Tire Size: 13x5.00-6


Scag Model Fitment Guide:

• SMST-61 (S/N 4840001-5559999)
• SMST-61A (S/N 4850001-5569999)
• SMST-61A (S/N 6850001-6859999)
• SMST-72 (S/N 4860001-5579999)
• SMST-72A (S/N 4870001-5589999)
• SMST-72A (S/N 6860001-6869999)
• STC40-17KA (S/N 5810000-5819999)
• STC48-19KA (S/N 5870000-5879999)
• STC48-20CV (S/N 5980000-5989999)
• STC48-21KA (S/N 5820000-5829999)
• STC48A-19KA (S/N 5880000-5889999)
• STC48A-20CV (S/N 6020000-6029999)
• STC48A-21KA (S/N 5890000-5899999)
• STC52A-21KA (S/N 5900000-5909999)
• STC52A-23KA (S/N 5910000-5919999)
• STT-31BSD (S/N 6840001-6849999)
• STT-31BSG (S/N 4420001-5549999)
• STT-31BSG (S/N 6830001-6839999)
• STT52-22CH (3810001-3819999)
• STT52-22CH (S/N 4260001-4269999)
• STT52-22KA (S/N 4340001-4349999)
• STT52-22KA (S/N 5460001-5469999)
• STT52-23CH (S/N 5380001-5389999)
• STT52-25CH (3850001-3859999)
• STT52-25CH (S/N 4300001-4309999)
• STT52-25CH (S/N 5420001-5429999)
• STT52A-22KA (S/N 5480001-5489999)
• STT52A-22KA (S/N 6740001-6749999)
• STT52A-23CH (S/N 5400001-5409999)
• STT52A-23CH (S/N 6670001-6679999)
• STT52A-23KA (S/N 7200001-7209999)
• STT52A-25CH (S/N 5440001-5449999)
• STT52A-25CH (S/N 6700001-6709999)
• STT52B-22CH (S/N 3830001-3839999)
• STT52B-22CH (S/N 4280001-4289999)
• STT52B-22KA (S/N 3910001-3919999)
• STT52B-22KA (S/N 4360001-4369999)
• STT52B-25CH (S/N 3870001-3879999)
• STT52B-25CH (S/N 4320001-4329999)
• STT61-22CH (3820001-3829999)
• STT61-22CH (S/N 4270001-4279999)
• STT61-22KA (S/N 4350001-4359999)
• STT61-22KA (S/N 5470001-5479999)
• STT61-23CH (S/N 5390001-5399999)
• STT61-25CH (3860001-3869999)
• STT61-25CH (S/N 4310001-4319999)
• STT61-25CH (S/N 5430001-5439999)
• STT61A-22KA (S/N 5490001-5499999)
• STT61A-22KA (S/N 6750001-6759999)
• STT61A-23CH (S/N 5410001-5419999)
• STT61A-23CH (S/N 6680001-6689999)
• STT61A-23KA (S/N 7210001-7219999)
• STT61A-25CH (S/N 5450001-5459999)
• STT61A-25CH (S/N 6710001-6719999)
• STT61A-27KA (S/N 6760001-6769999)
• STT61B-22CH (S/N 3840001-3849999)
• STT61B-22CH (S/N 4290001-4299999)
• STT61B-22KA (S/N 3920001-3929999)
• STT61B-22KA (S/N 4370001-4379999)
• STT61B-25CH (S/N 3880001-3889999)
• STT61B-25CH (S/N 4330001-4339999)
• STT72A-27KA (S/N 7140001-7149999)

Have a question about this product? Contact us for assistance and tell us you are looking at SKU 2PK-CF-481551-9613.
