Toro Z Master Pnuematic Caster Wheel & Tire 2-Pack (P/N 110-5746 & 1-644251)

$179.95

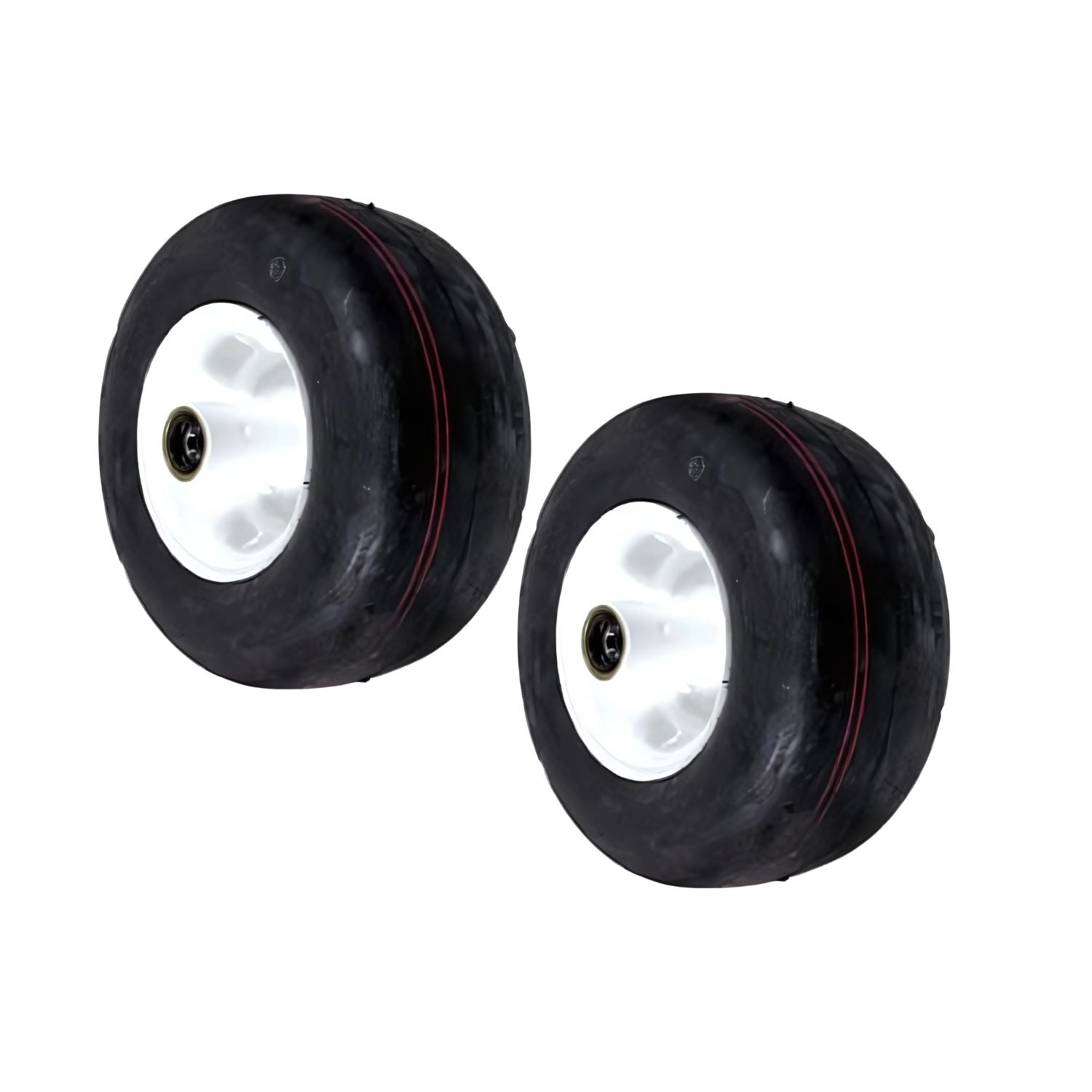

This is a set of 2 air-filled front caster wheel and tire assemblies that fit specific Toro Z Master lawn mower models.

Sold as a set of 2 - These wheel and tire assemblies replace Toro part numbers 110-5746 & 1-644251 but do not include the front caster spacer which is the metal sleeve that slides through the wheel and tire assembly.  We do sell the wheel spacers for these wheels.

The bearings and seals are already installed in the hub of the rim. You can reuse the metal sleeves if they are not worn unevenly; otherwise, you will need to purchase new ones separately.

The hub length is 7-1/4".  The ID of the bearings is 3/4" (The metal sleeve reduces this ID to 1/2" to accept the wheel bolt.)

Replaces OEM Part Numbers:

  • Toro 1-644251
  • Toro 110-5746

Dimensions:

  • Bore (ID): 3/4"
  • Tread: SMOOTH
  • Tire TYpe: TUBELESS
  • Tire Size: 13x6.50-6
  • Ply: 4
  • Hub Length: 7-1/4"

Have a question about this product? Contact us for assistance and tell us you are looking at SKU 2PK-B1WL37.
