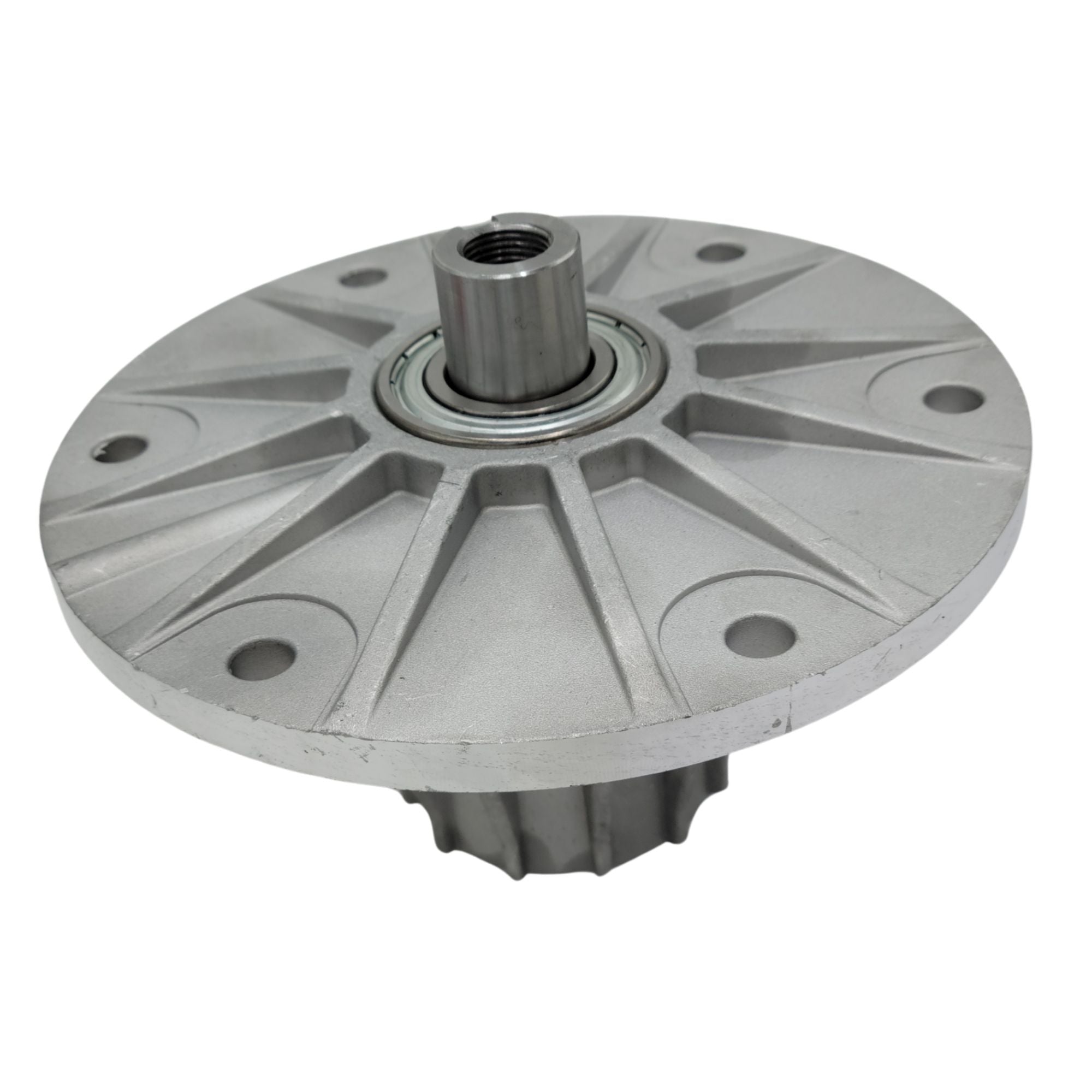

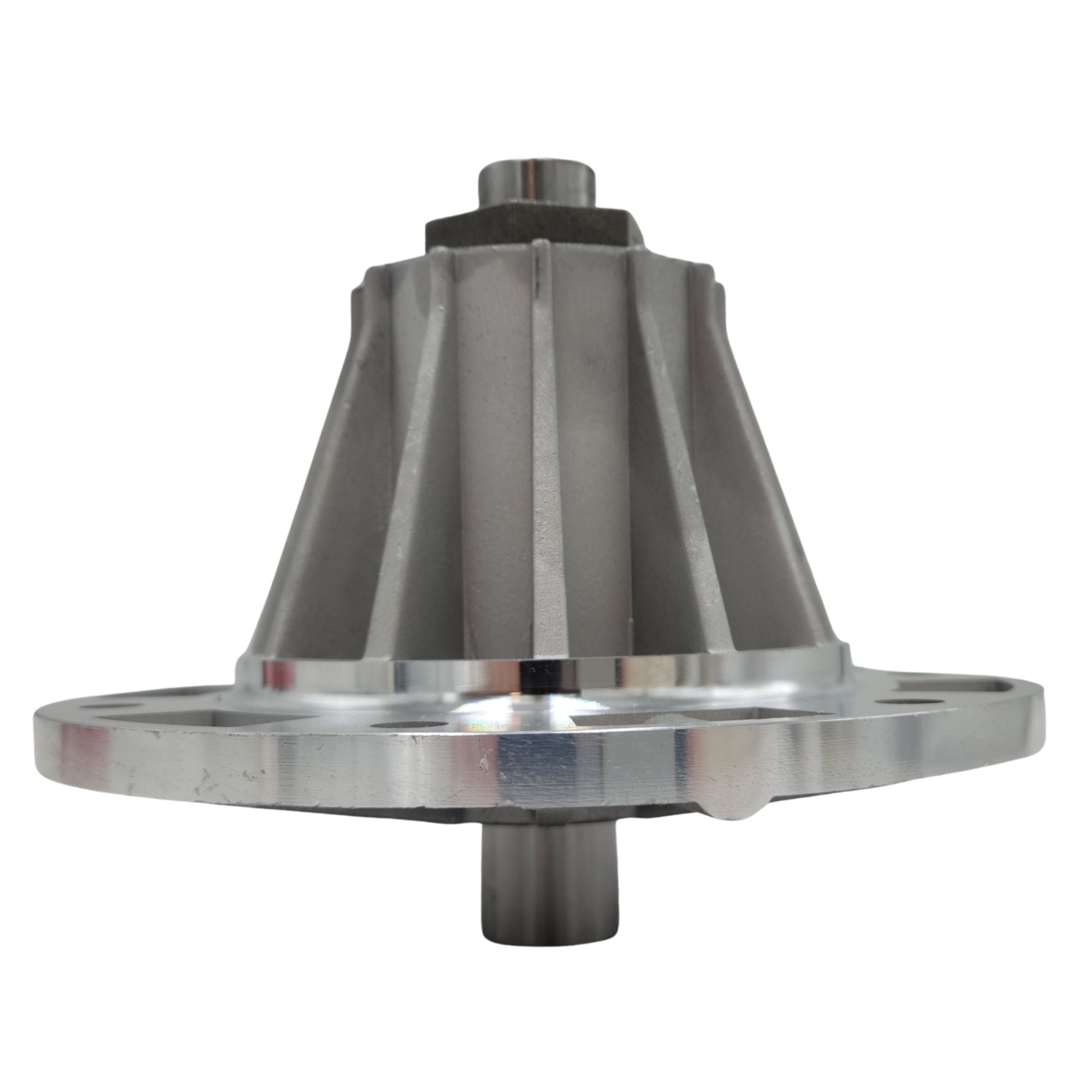

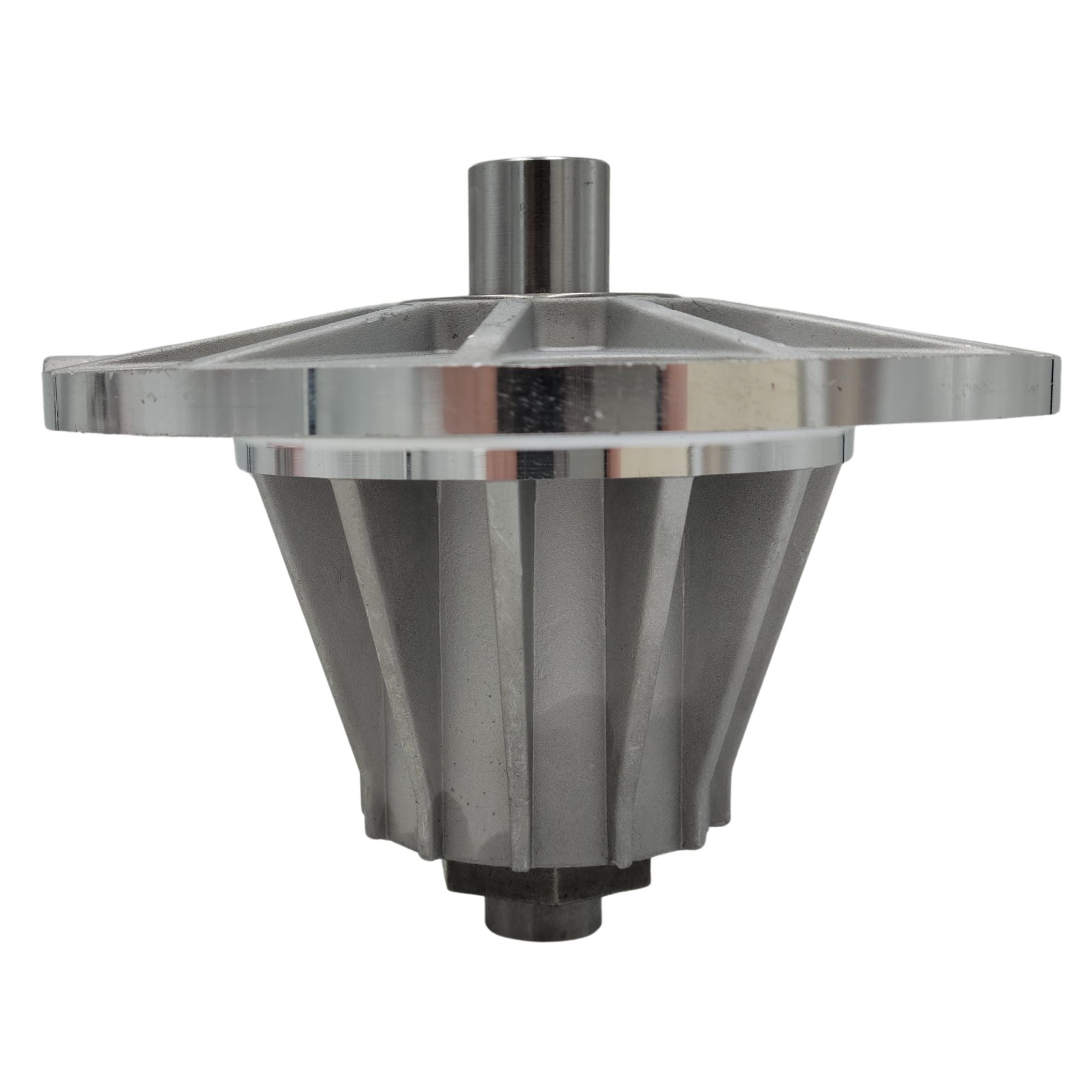

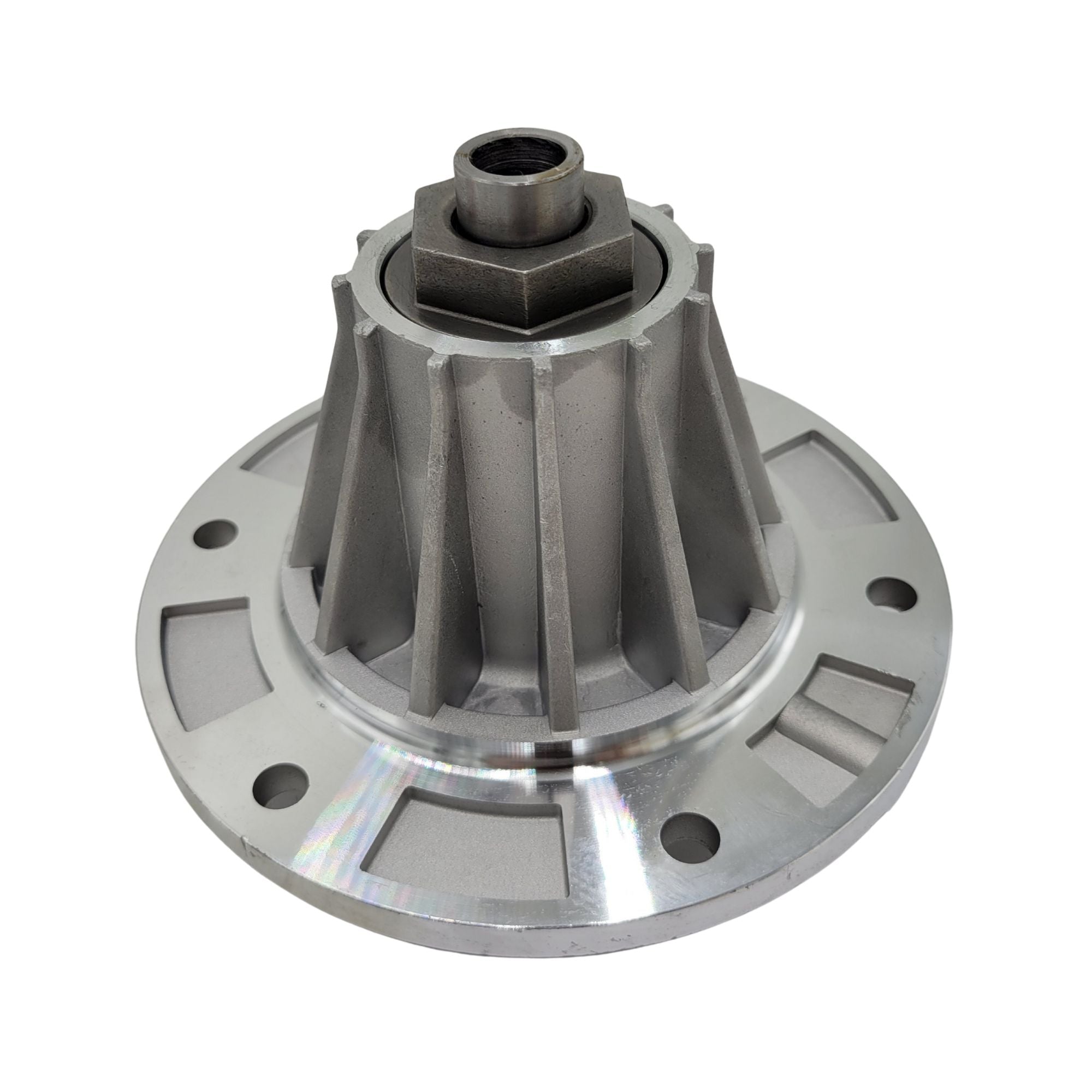

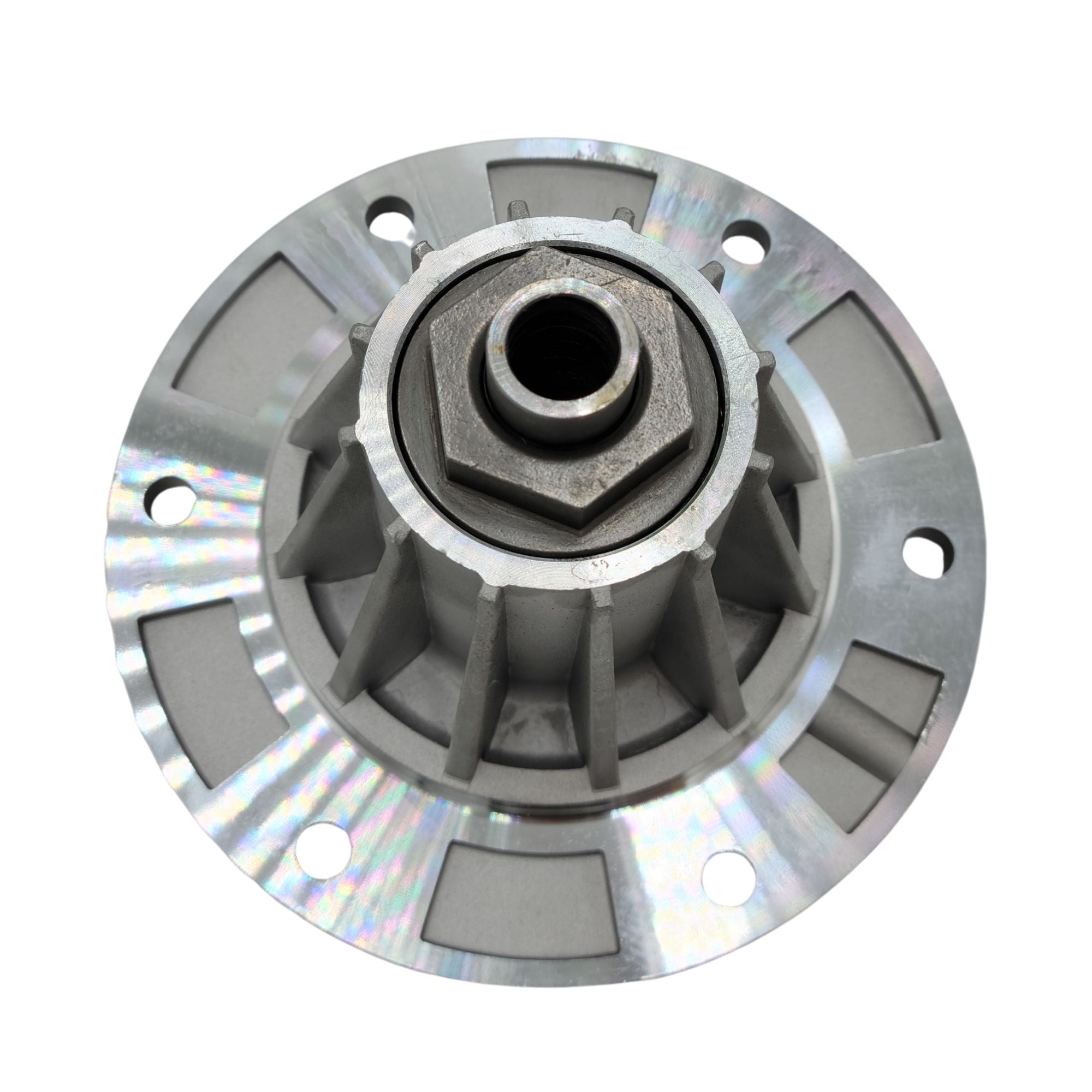

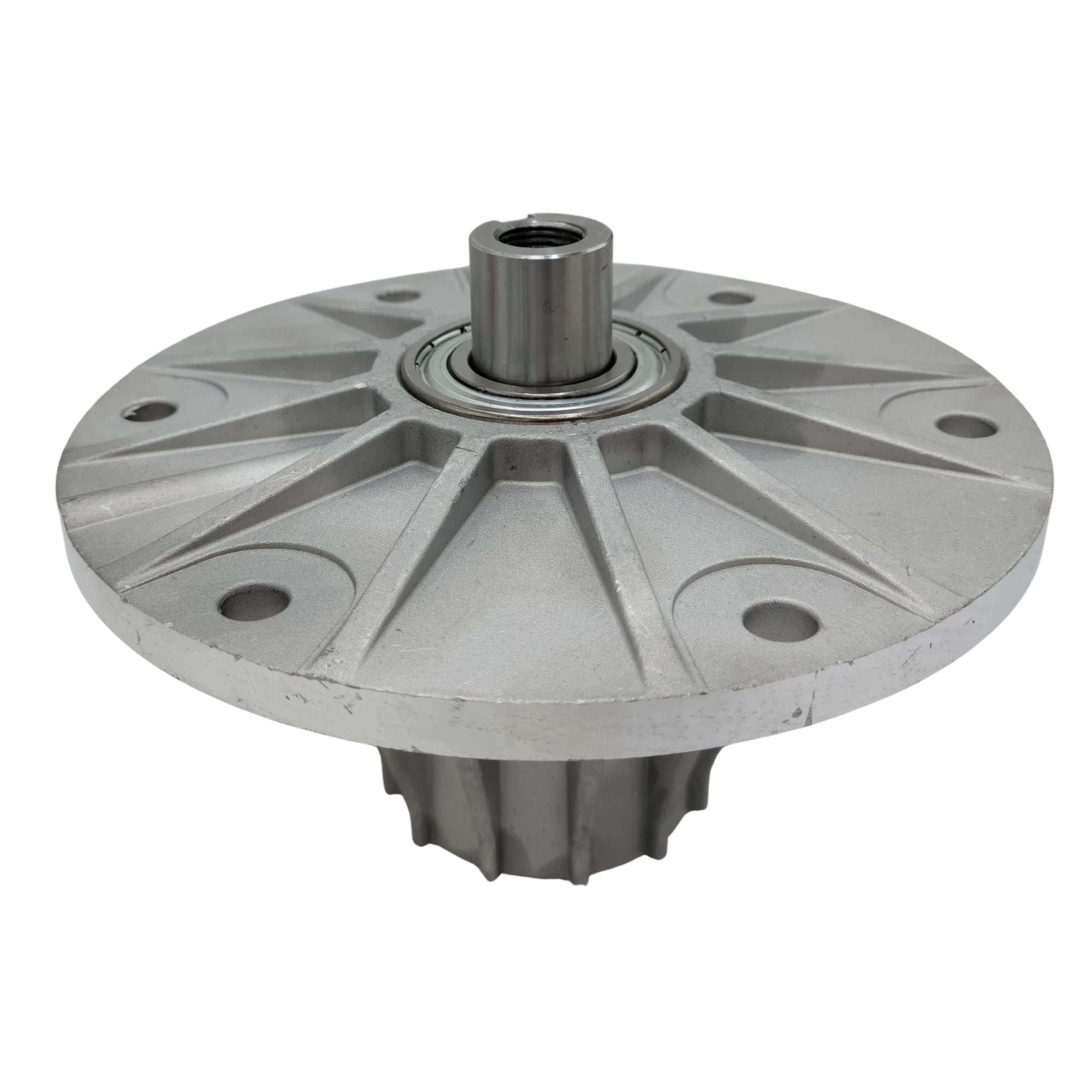

Bobcat Spindle 4171231 (Also Replaces 4115850 and 4165023)

Spindle Assembly replaces Bobcat 4171231.  It also replaces old part numbers 4115850 and 4165023.

Per Bobcat, this spingle is used on the following zero-turn riding mowers:

942621, 942630, 942504J, 942631, 942632, 942633, 942506J, 942704J, 942706J, 942507J, 942707J, 942717J, 942508J, 942832K, 942832L, 942509J, 942833K, 942509K, 942842L, 942510K, 942511J, 942521K, 942511K, 942514J, 942514K, 942515J, ZT3000, 942515K, ZT3500, 9993001, 942516J, 9993002, 942406, 942516K, 9993501, 942407, 9993502, 942297, 942517J, 942298, 942299, 942302, 942519J, 942311, 942519K, 942519L, 942519M, 942520J, 942520K, 942521J, 942521L, 942529, 942522J, 942533, 942523J, 942525J, 942526J, 942622, 942529K, 942634, 942532, 942532CA, 942532K, 942532L, 942533CA, 942533K, 942534J, 942534K, 942535J, 942535K, 942535L, 9993003, 942536J, 9993503, 942536K, 942537J, 942537K, 942538K, 942539K, 942540K, 942541K, 942542L, 942542M, 942543L, 942543M, 942545L, 942545M, 942546M, 942547M, 942317EU, 942408H, 942409J, 942411K, 942412K, 942501J, 942620, & 942502J.

BUNTON, PROCAT, XRZ, XRZ PRO, & ZT.

Replaces Bobcat OEM Part Numbers:

• Bobcat 4171231
• Bobcat 4115850*
• Bobcat 4165023*

*Previous part numbers were 4115850 and 4165023.

Dimensions:

• Height: 5 1/2"
• OD: 7"
• Threads: 5/8"-18 UNF

Have a question about this product? Contact us for assistance and tell us you are looking at SKU 17807.  Rotary item #17807.
