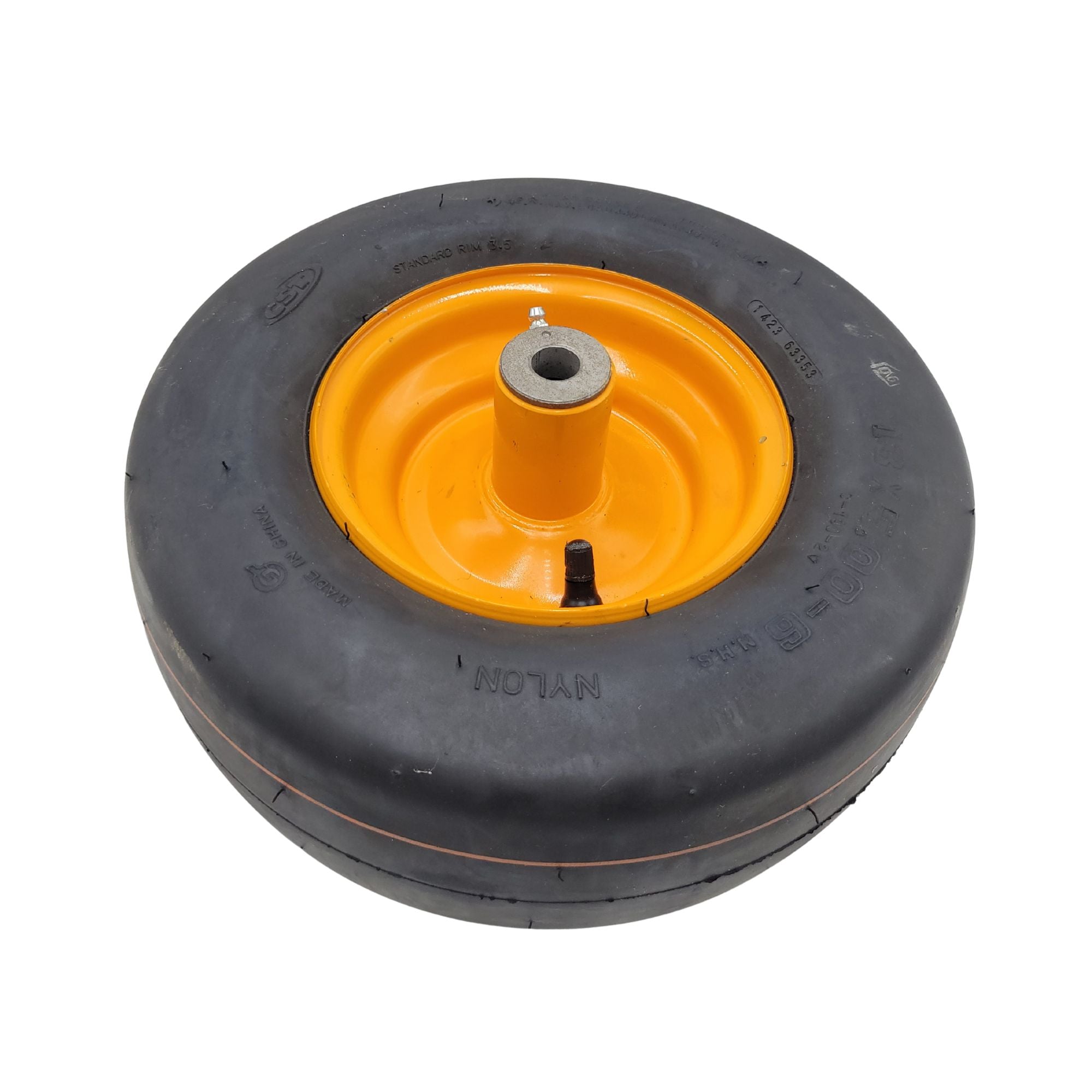

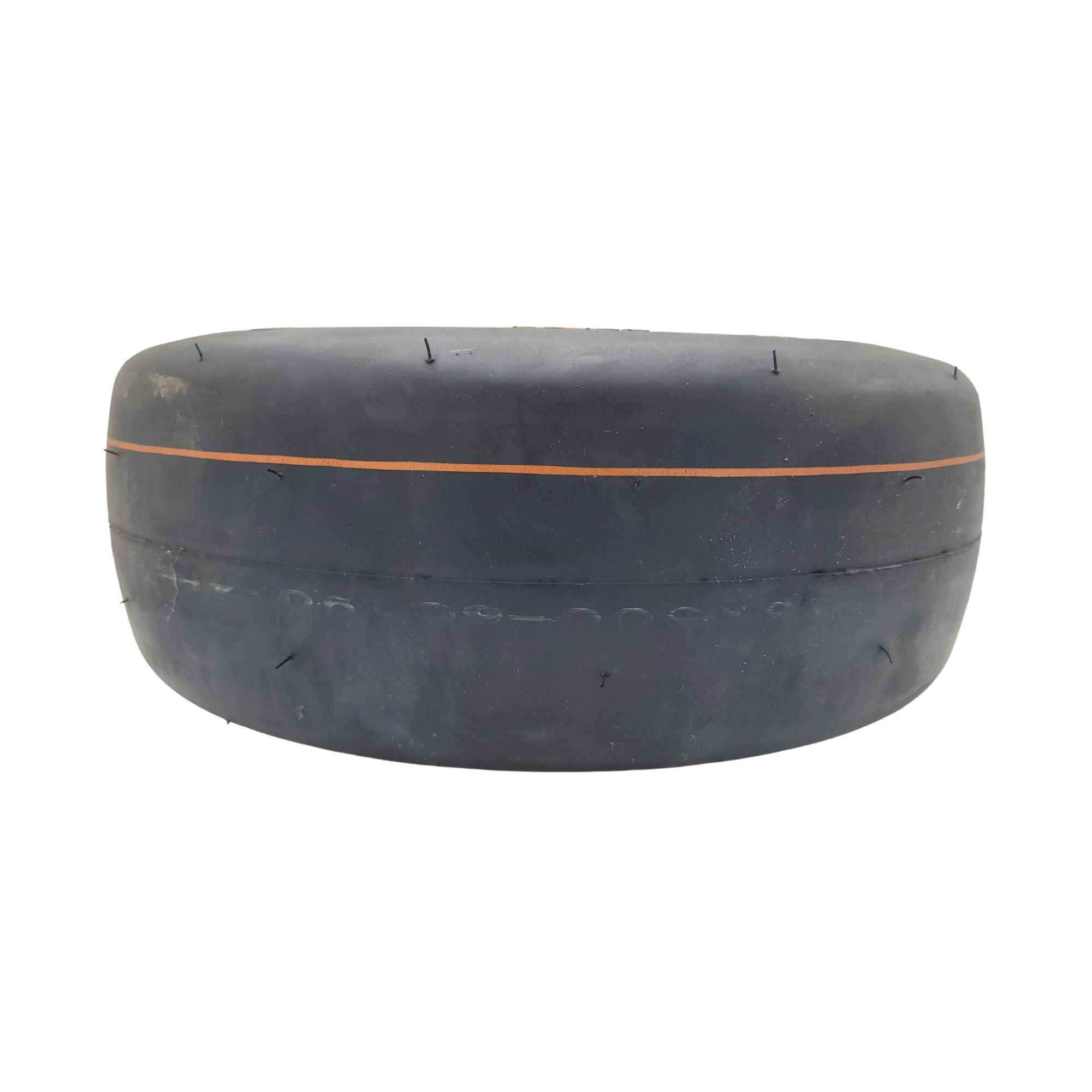

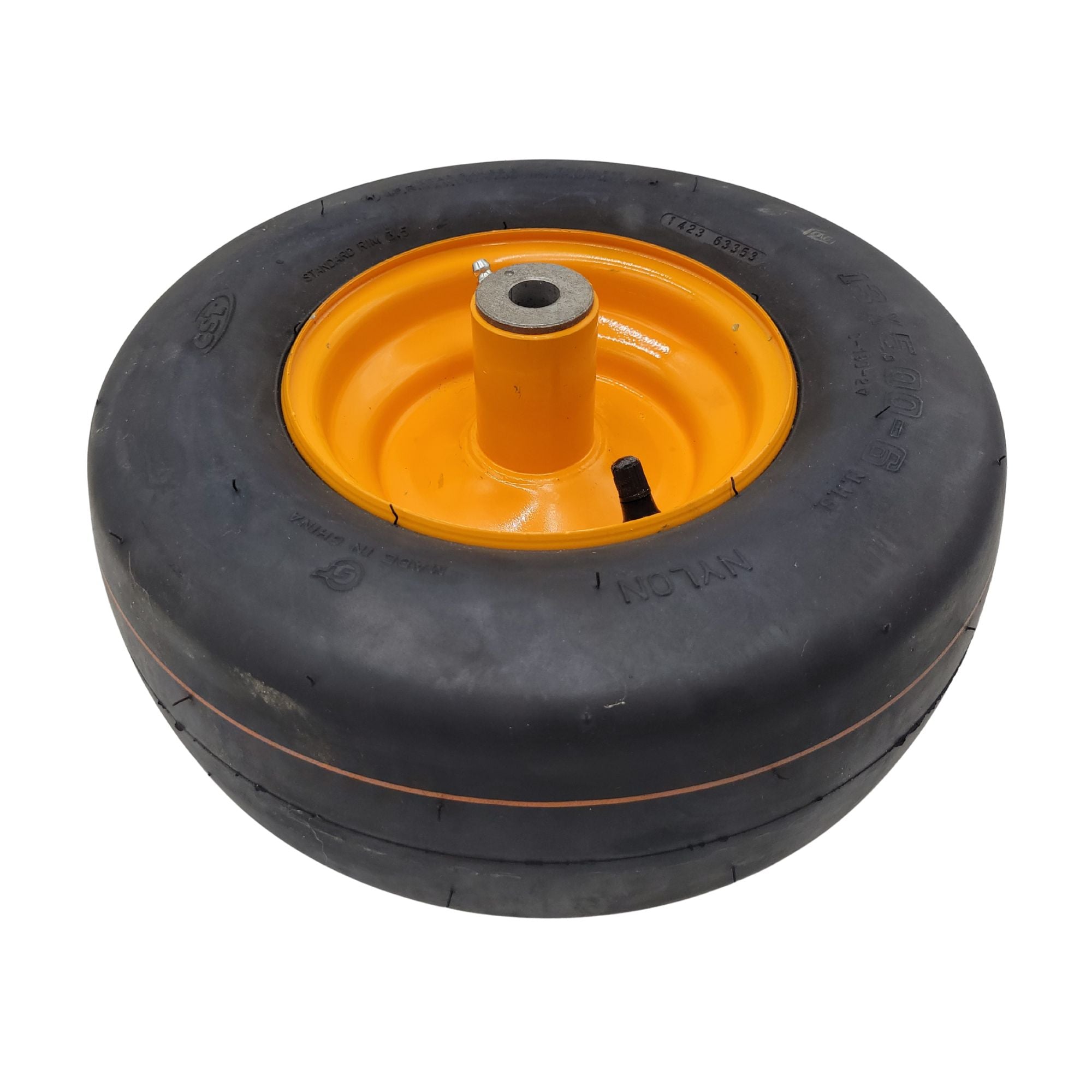

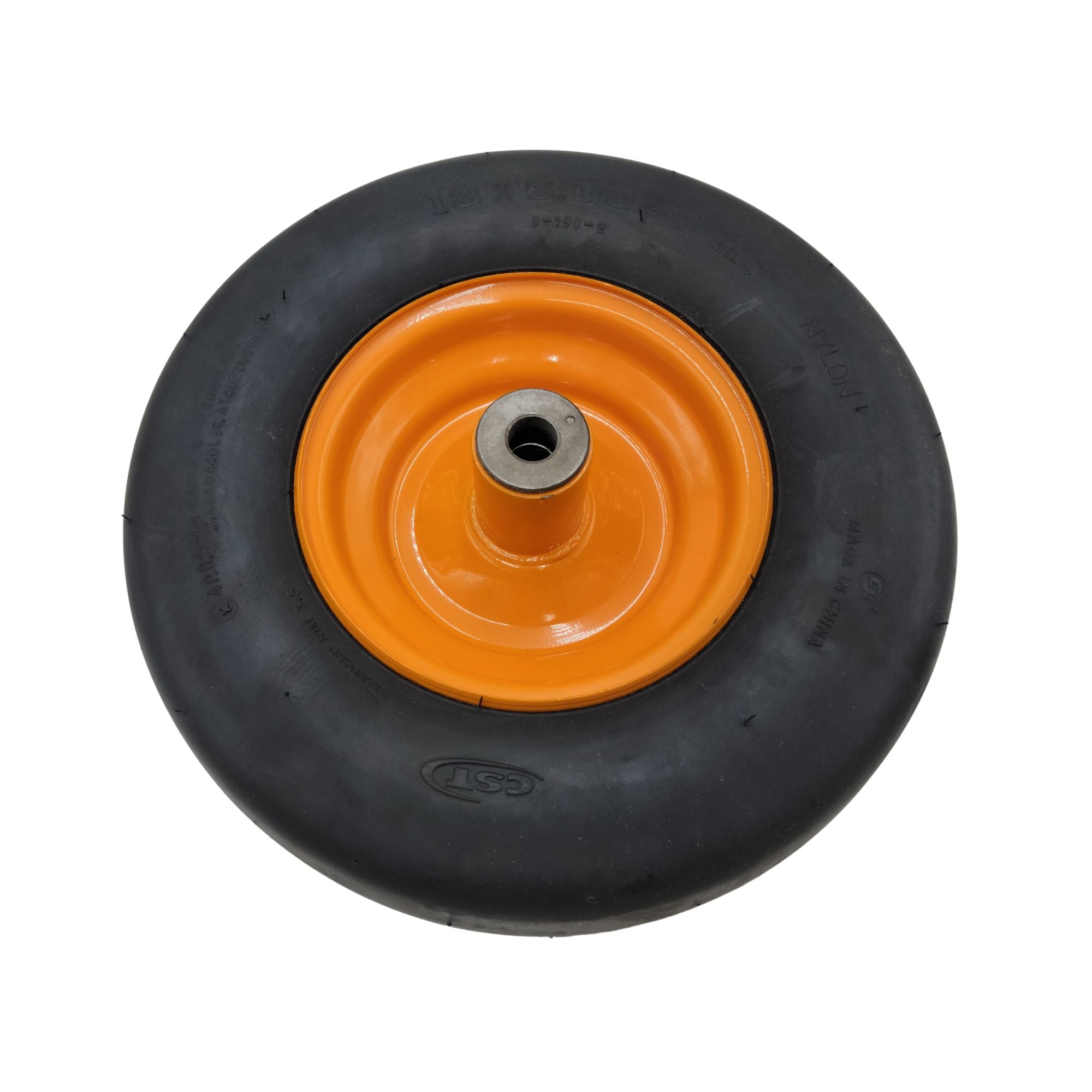

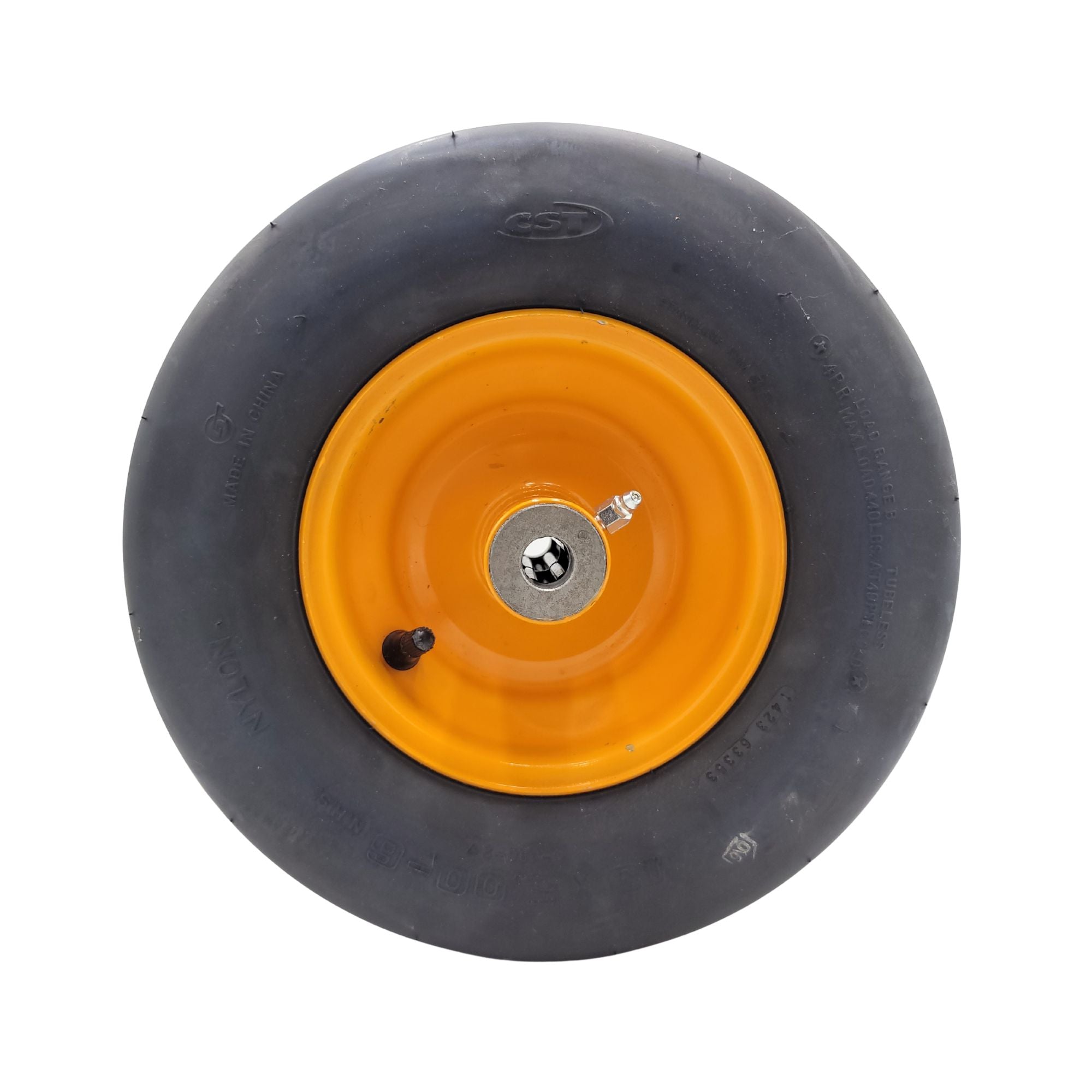

Scag Caster Wheel 481551 Air-Filled 13x5.00-6 CST Tire

$79.95

Front caster wheel used on many Scag lawn mower models such as specific Turf Tigers, Tiger Cubs, and Saver Tooth Tigers.

The hub length is 5-7/8 inches long with a 5/8" inner diameter to accept the spanner bushing which is not included. We do have the spanner bushing for this wheel and tire if you also need it - Scag 43430.  The roller cage bearings and bushings are installed as shown along with the air valve and grease zerk fitting.

Please verify the correct fit by matching the part number to the caster wheel called for by your Scag mower model. If you're unsure about fit, contact us for assistance.

We have a model fitment guide below for your reference.

Replaces OEM Part Number:

  • Scag 481551

Dimensions:

  • Bore: 5/8"
  • Hub Length: 5-7/8"
  • Tread: Smooth
  • Tire Type: Tubeless
  • Tire Brand: CST (Cheng Shin Tire)
  • Tire Size: 13x5.00-6
  • Ply: 4

Scag Model Fitment Guide:

  • SMST-61 (S/N 4840001-5559999)
  • SMST-61A (S/N 4850001-5569999)
  • SMST-61A (S/N 6850001-6859999)
  • SMST-72 (S/N 4860001-5579999)
  • SMST-72A (S/N 4870001-5589999)
  • SMST-72A (S/N 6860001-6869999)
  • STC40-17KA (S/N 5810000-5819999)
  • STC48-19KA (S/N 5870000-5879999)
  • STC48-20CV (S/N 5980000-5989999)
  • STC48-21KA (S/N 5820000-5829999)
  • STC48A-19KA (S/N 5880000-5889999)
  • STC48A-20CV (S/N 6020000-6029999)
  • STC48A-21KA (S/N 5890000-5899999)
  • STC52A-21KA (S/N 5900000-5909999)
  • STC52A-23KA (S/N 5910000-5919999)
  • STT-31BSD (S/N 6840001-6849999)
  • STT-31BSG (S/N 4420001-5549999)
  • STT-31BSG (S/N 6830001-6839999)
  • STT52-22CH (3810001-3819999)
  • STT52-22CH (S/N 4260001-4269999)
  • STT52-22KA (S/N 4340001-4349999)
  • STT52-22KA (S/N 5460001-5469999)
  • STT52-23CH (S/N 5380001-5389999)
  • STT52-25CH (3850001-3859999)
  • STT52-25CH (S/N 4300001-4309999)
  • STT52-25CH (S/N 5420001-5429999)
  • STT52A-22KA (S/N 5480001-5489999)
  • STT52A-22KA (S/N 6740001-6749999)
  • STT52A-23CH (S/N 5400001-5409999)
  • STT52A-23CH (S/N 6670001-6679999)
  • STT52A-23KA (S/N 7200001-7209999)
  • STT52A-25CH (S/N 5440001-5449999)
  • STT52A-25CH (S/N 6700001-6709999)
  • STT52B-22CH (S/N 3830001-3839999)
  • STT52B-22CH (S/N 4280001-4289999)
  • STT52B-22KA (S/N 3910001-3919999)
  • STT52B-22KA (S/N 4360001-4369999)
  • STT52B-25CH (S/N 3870001-3879999)
  • STT52B-25CH (S/N 4320001-4329999)
  • STT61-22CH (3820001-3829999)
  • STT61-22CH (S/N 4270001-4279999)
  • STT61-22KA (S/N 4350001-4359999)
  • STT61-22KA (S/N 5470001-5479999)
  • STT61-23CH (S/N 5390001-5399999)
  • STT61-25CH (3860001-3869999)
  • STT61-25CH (S/N 4310001-4319999)
  • STT61-25CH (S/N 5430001-5439999)
  • STT61A-22KA (S/N 5490001-5499999)
  • STT61A-22KA (S/N 6750001-6759999)
  • STT61A-23CH (S/N 5410001-5419999)
  • STT61A-23CH (S/N 6680001-6689999)
  • STT61A-23KA (S/N 7210001-7219999)
  • STT61A-25CH (S/N 5450001-5459999)
  • STT61A-25CH (S/N 6710001-6719999)
  • STT61A-27KA (S/N 6760001-6769999)
  • STT61B-22CH (S/N 3840001-3849999)
  • STT61B-22CH (S/N 4290001-4299999)
  • STT61B-22KA (S/N 3920001-3929999)
  • STT61B-22KA (S/N 4370001-4379999)
  • STT61B-25CH (S/N 3880001-3889999)
  • STT61B-25CH (S/N 4330001-4339999)
  • STT72A-27KA (S/N 7140001-7149999)

Have a question about this product? Contact us for assistance and tell us you are looking at SKU 9605.
