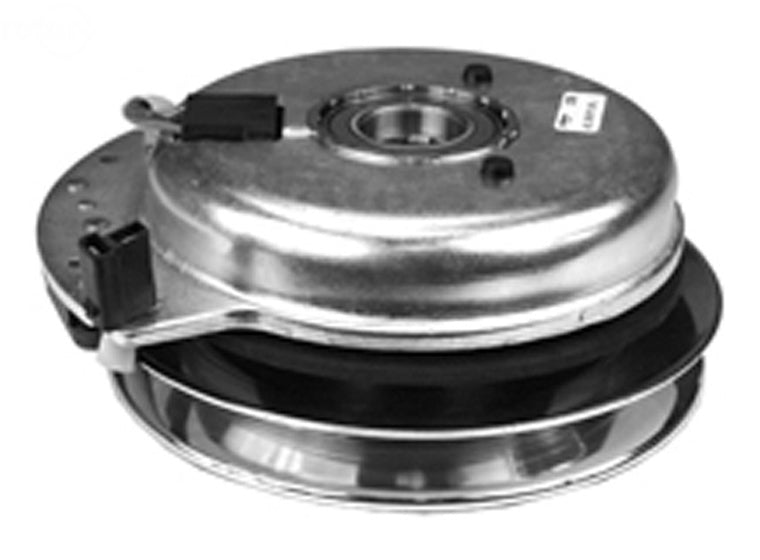

Toro/Exmark 103-0609 OEM PTO Clutch (Warner 5218-80)

$239.95

This is the original OEM replacement clutch for Exmark and Toro part number 103-0609.

The bore is 1 inch.  The pulley OD is 7-3/8" and accepts a 5/8" wide (5L) belt.  This is an authentic Warner Electric PTO Clutch 5218-80.

Warner 5218-80 Replaces:

  • Exmark: 103-0690
  • Toro: 103-0690

Technical Specifications:

  • Function: Clutch / Brake
  • Voltage: 12 VDC
  • Rated Torque (lb-ft): 200
  • Rotation: CCW
  • Current Draw (Amps): 6.53
  • Resistance (Ohms): 1.84
  • Connection Type: 10.75 in long wires
  • Pulley/Flange OD (in): 7.39
  • Bore Diameter (in): 1
  • Mounting: Standard
  • Weight (lbs): 12.4
  • D-drive Number: 807-0144 included with this clutch/brake
  • Cable Accessory: not included

Have a question about this product? Contact us for assistance and tell us you are looking at SKU 5218-80.
