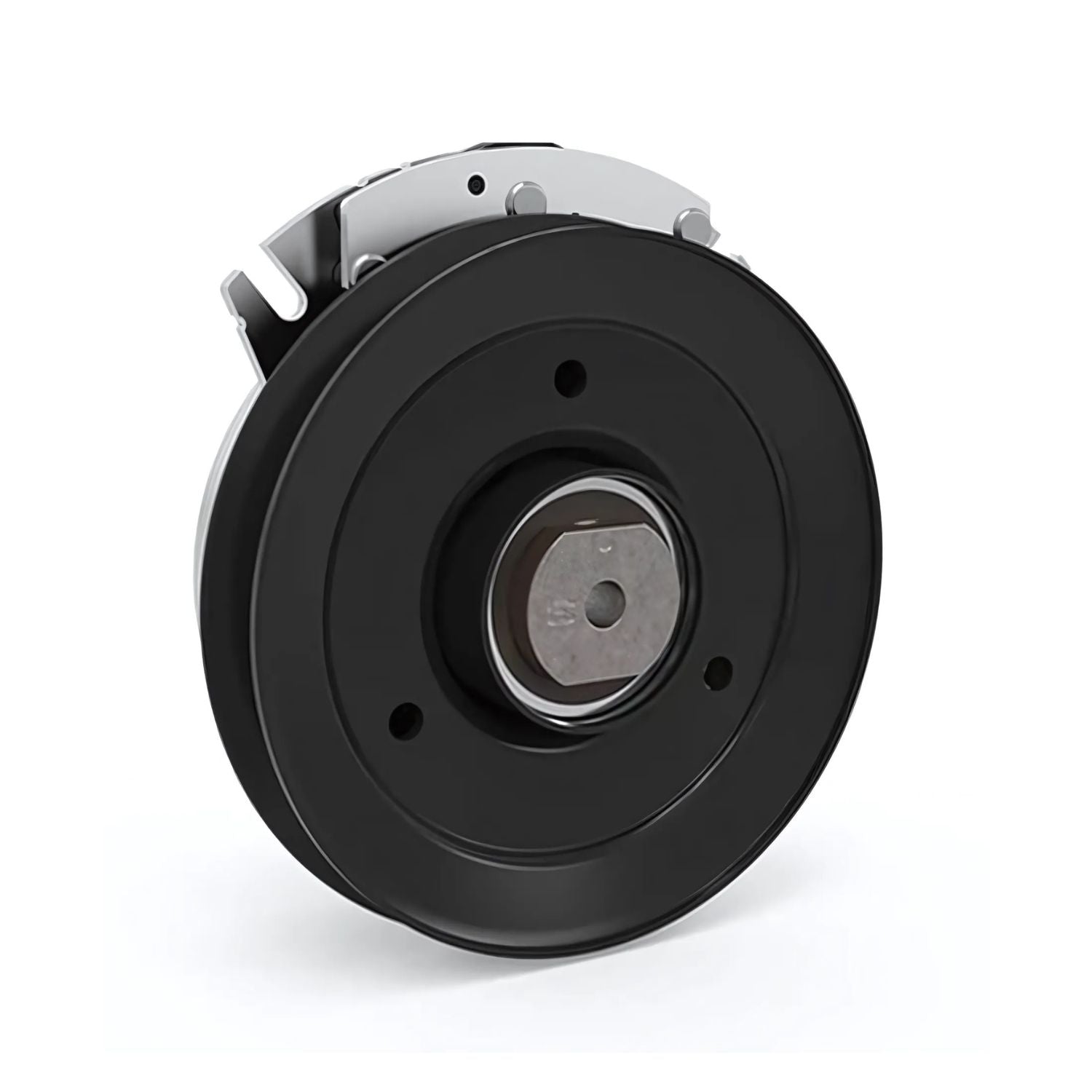

Dixie Chopper 500012 OEM PTO Clutch

OEM replacement clutch with wiring pigtail for Dixie Chopper part number 500012.

Technical Specifications:

Function: Clutch / Brake
Voltage: 12 VDC
Rated Torque (lb-ft):200
Rotation: CCW
Current Draw (Amps): 6.53
Resistance (Ohms): 1.84
Connection Type: integral
Pulley/Flange OD (in): 7.39
Bore Diameter (in): 1.125
Mounting: Standard
Weight (lbs): 12.5
D-drive Number: 807-0168 included with this clutch/brake
Cable Accessory: 5218-251-001 included with this clutch/brake

This is an authentic Warner Electric PTO Clutch 5218-253 which now replaces 5218-107.

Warner 5218-253 Replaces Dixie Chopper Part Number:

• 500012

Have a question about this product? Email us for assistance and tell us you are looking at SKU 5218-253-DC.
