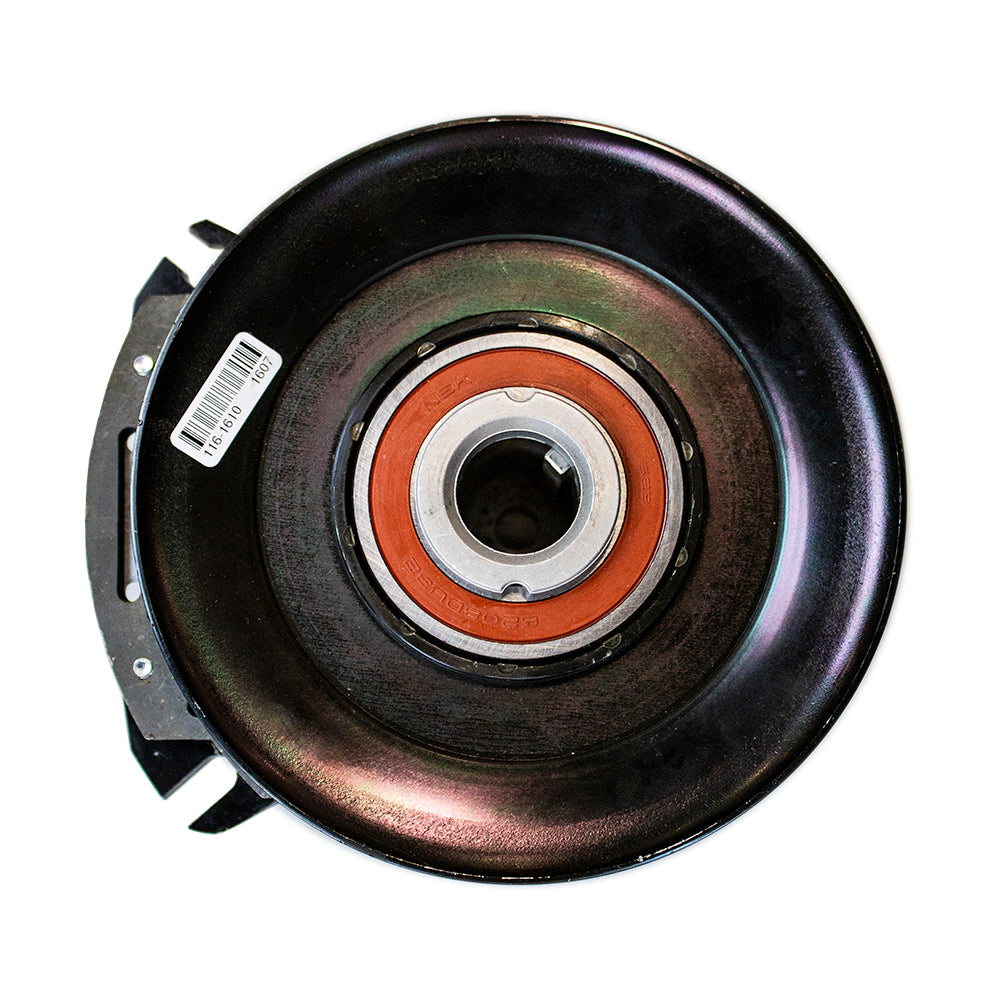

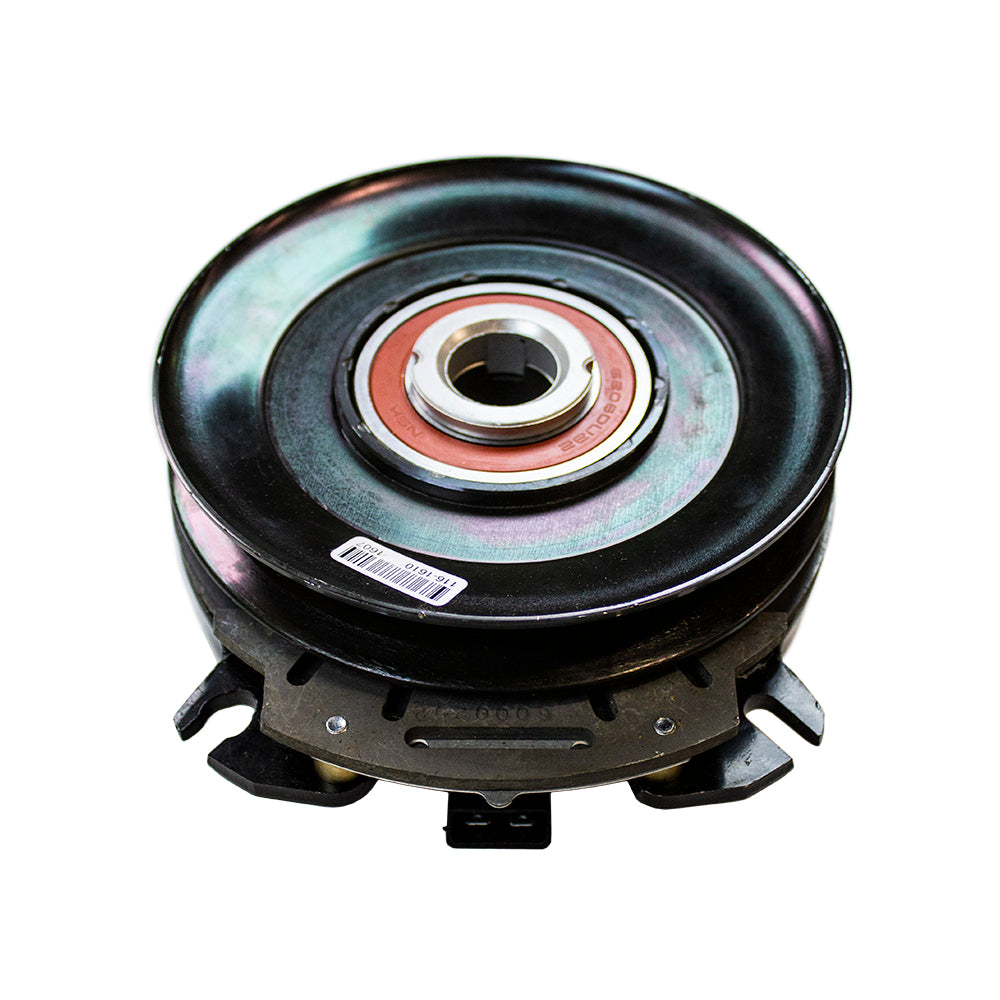

Exmark PTO Clutch Kit 116-1627 - CMS250 XSKD (OEM SS 116-1610 & 109-7668)
Authentic OEM replacement PTO clutch for select Exmark Lazer Z models.
It replaces Exmark part number 116-1627, which now replaces 116-1610 and 109-7668.
If your Exmark's model and serial number use any of these clutch part numbers, it is a brand-new version of the clutch that came on your mower when new.
If you need any assistance verifying the fitment on your machine, please contact us with your lawn mower's model and serial number. Please also tell us your deck width and the brand of the engine on your lawn mower.
This PTO clutch fits specific Exmark Lazer Z models:
- LXS25KD605 (Serial No. 720000-849999)
- LXS25KD665 (Serial No. 720000-849999)
- LXS25KD725 (Serial No. 720000-849999)
- LZD25KD605 (Serial No. 920000-999999)
- LZD25KD725 (Serial No. 920000-999999)
- LZDS902K605 (Serial No. 312000000-314999999)
- LZDS902K60RD (Serial No. 313000000-314999999)
- LZDS902K725 (Serial No. 312000000-312999999)
- LZDS902K725 (Serial No. 313000000-314999999)
- LZDS902K72RD (Serial No. 313000000-314999999)
- LZS902DKU605A1 (Serial No. 315000000-316999999)
- LZS902DKU605A1 (Serial No. 400010500-402082299)
- LZS902DKU60R00 (Serial No. 315000000-316999999)
- LZS902DKU60R00 (Serial No. 400010500-402082299)
- LZS902DKU725A1 (Serial No. 315000000-316999999)
- LZS902DKU725A1 (Serial No. 400010500-402082299)
- LZS902DKU72R00 (Serial No. 315000000-316999999)
- LZS902DKU72R00 (Serial No. 400010500-402082299)
Specs/Details:
- Function: Clutch / Brake
- Voltage: 12 VDC
- Rated Torque (lb-ft): 250
- Rotation: CW
- Current Draw (Amps): 6.65
- Resistance (Ohms): 1.81
- Connection Type: integral
- Pulley/Flange OD (in): 7.05
- Bore Diameter (in): 1.125
- Mounting: Reverse
- Weight (lbs): 17
- D-drive Number: 807-0078 included with this clutch/brake
- Wiring Pigtail: not included
- Designed and assembled in the USA
- Warner Electric 5228-8 (52288)
Have a question about this product? Please contact us for assistance and tell us you are looking at SKU 5228-8.
