Ferris 5023136YP Tire Assembly Set 13x6.50-6 Flat-Free 5023136 5023136X1YP

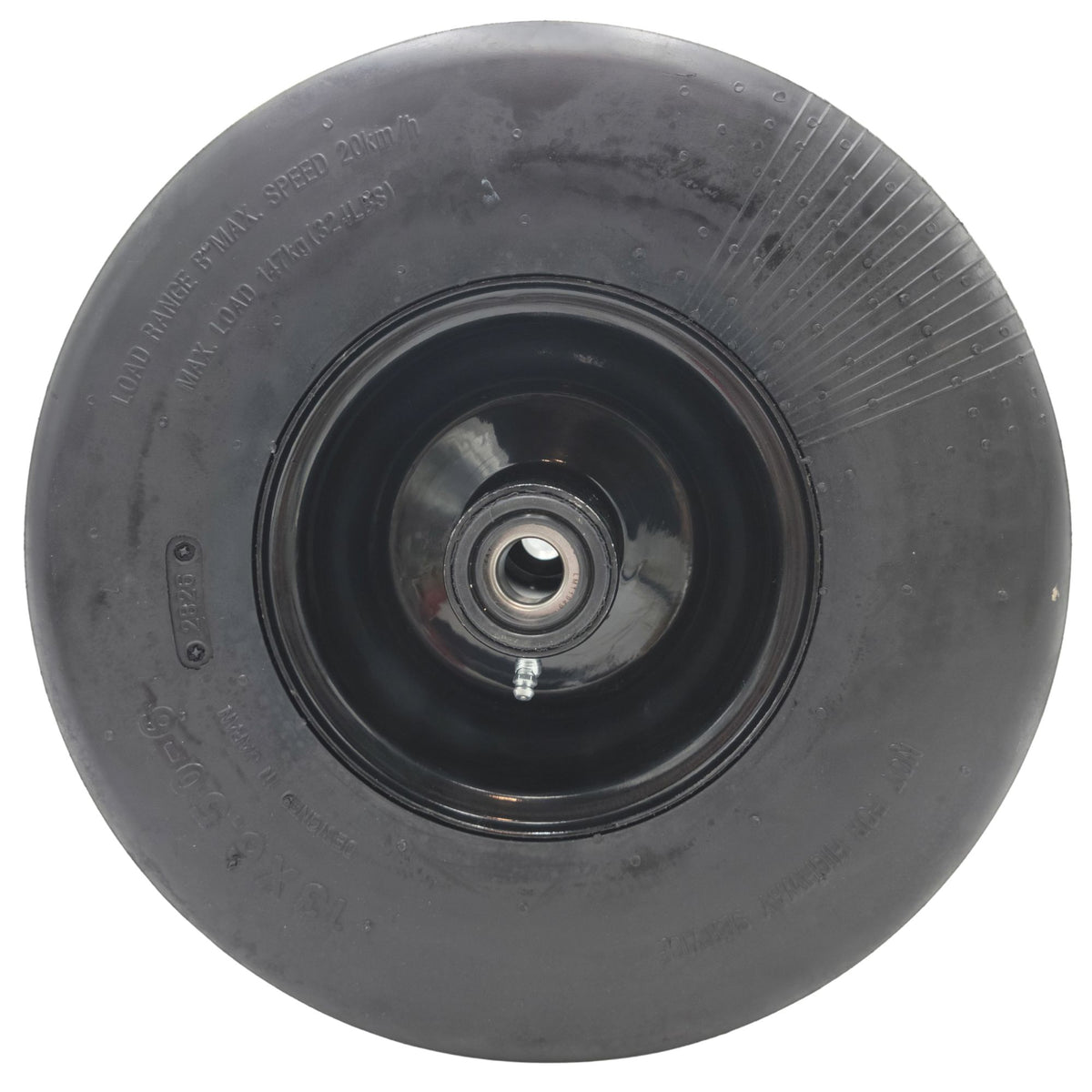

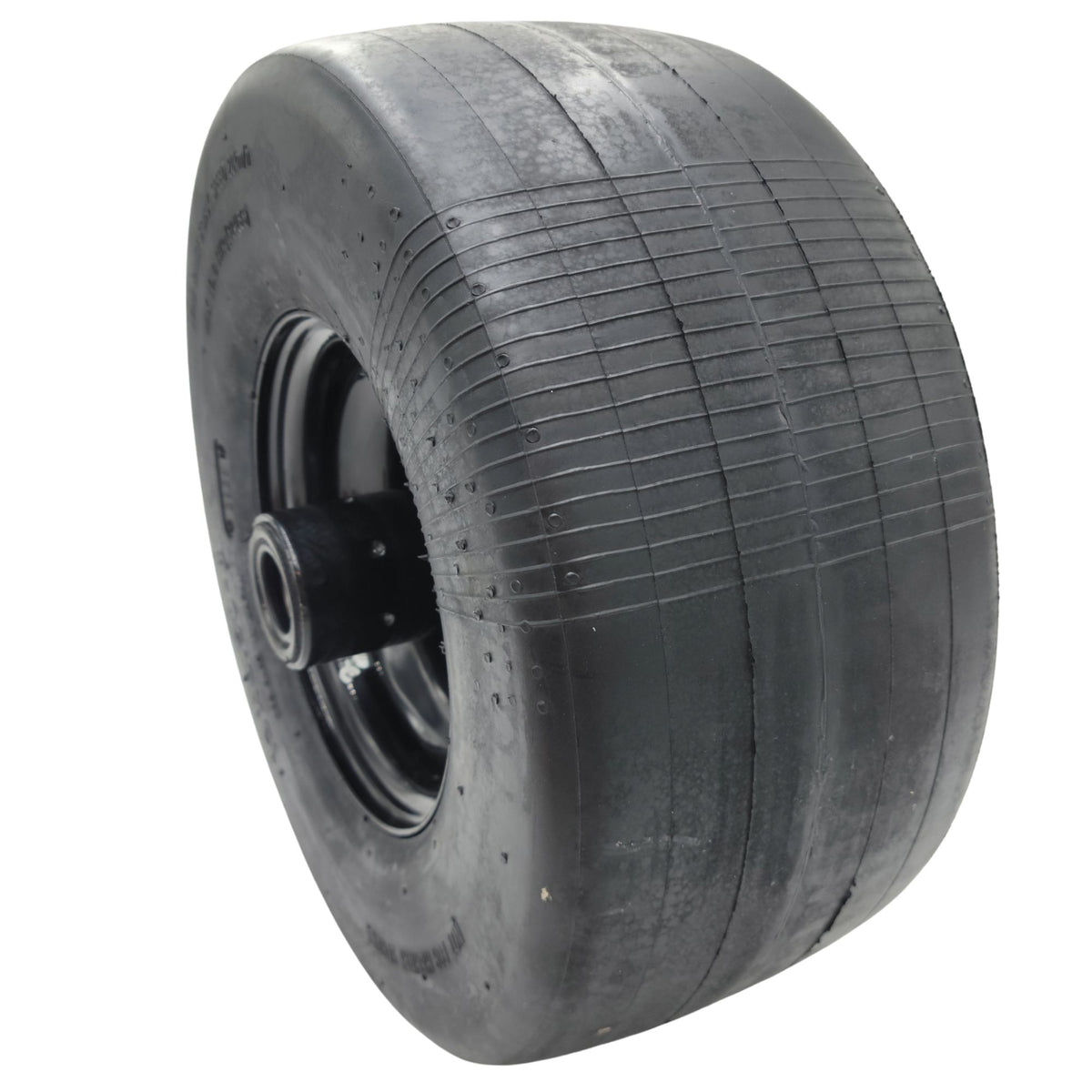

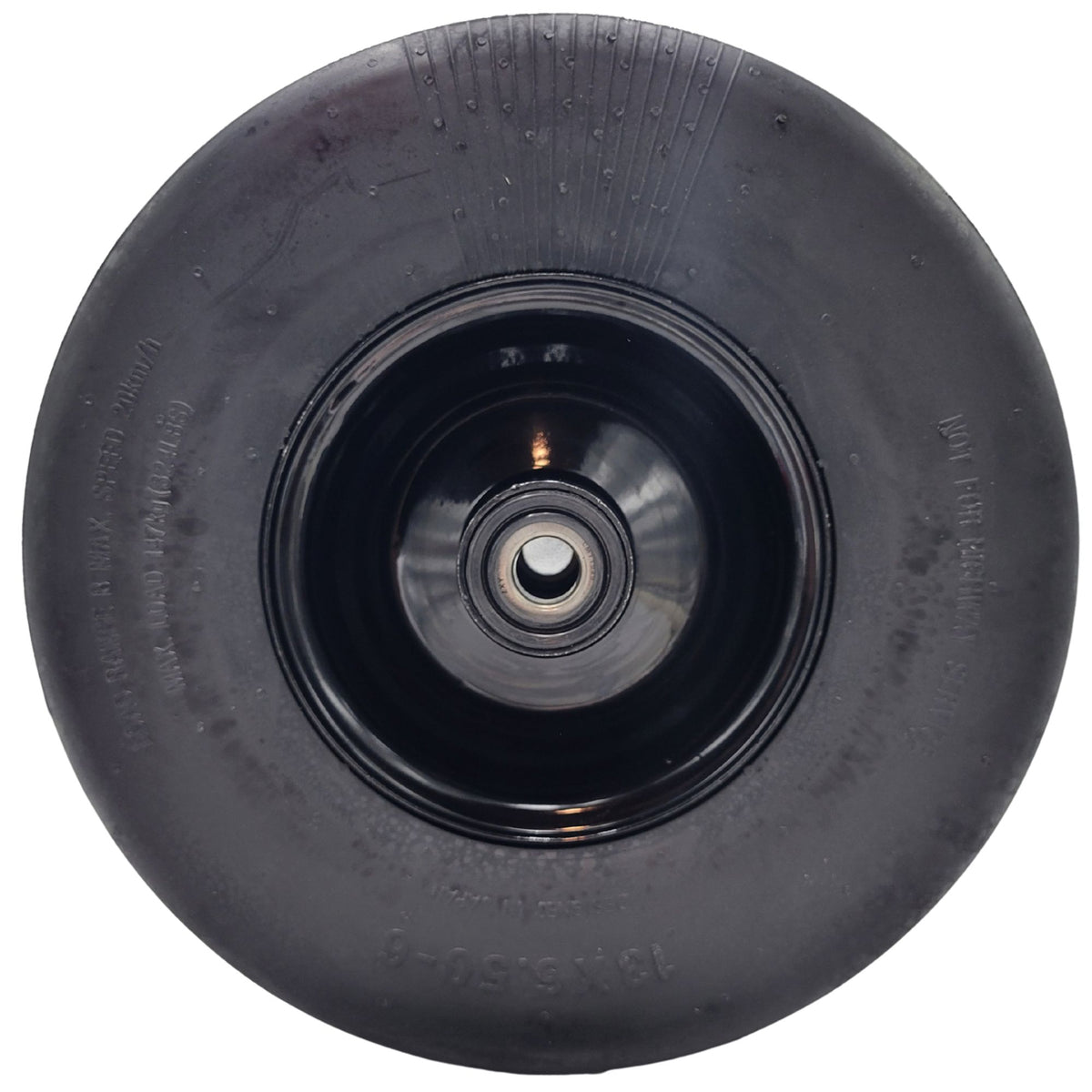

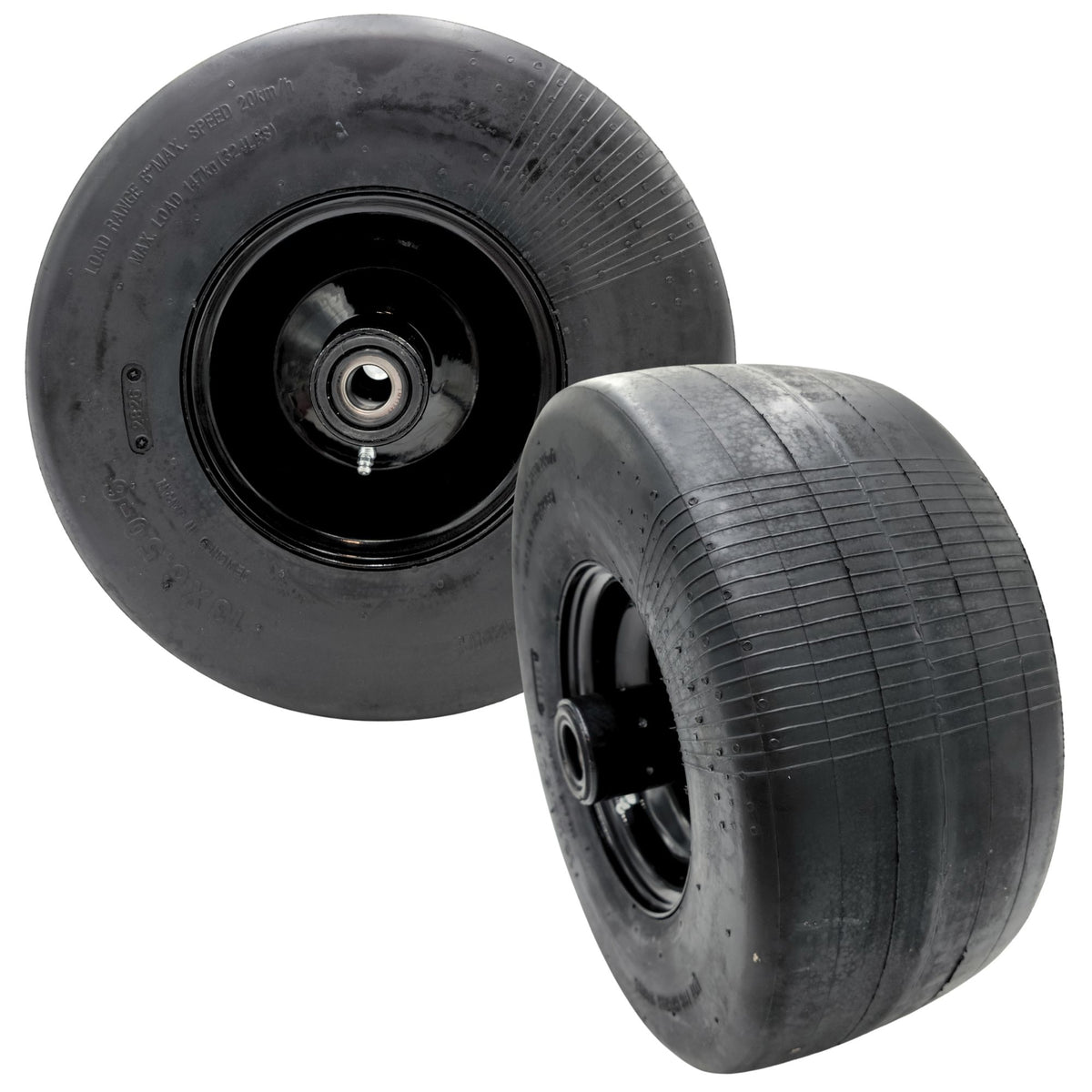

This set includes two 13x6.50-6 flat-free black rim-and-tire assemblies.

They fit most IS2100Z, IS2500Z, F200XT, F800X, IS3100Z, IS4500Z, IS5000Z, and IS4000Z Ferris models.

Please reference your specific mower's parts diagram to verify it uses part number 5023136, 5023136YP, 5023136X1, or 5023136X1YP.

This is a commercial-grade, heavy-duty wheel and tire assembly made by Lawn Crack as a semi-pneumatic option for large Ferris zero-turn mowers.  It will also fit Snapper, Snapper Pro, and Simplicity models that use part numbers 5023136, 5023136YP, 5023136X1, or 5023136X1YP.

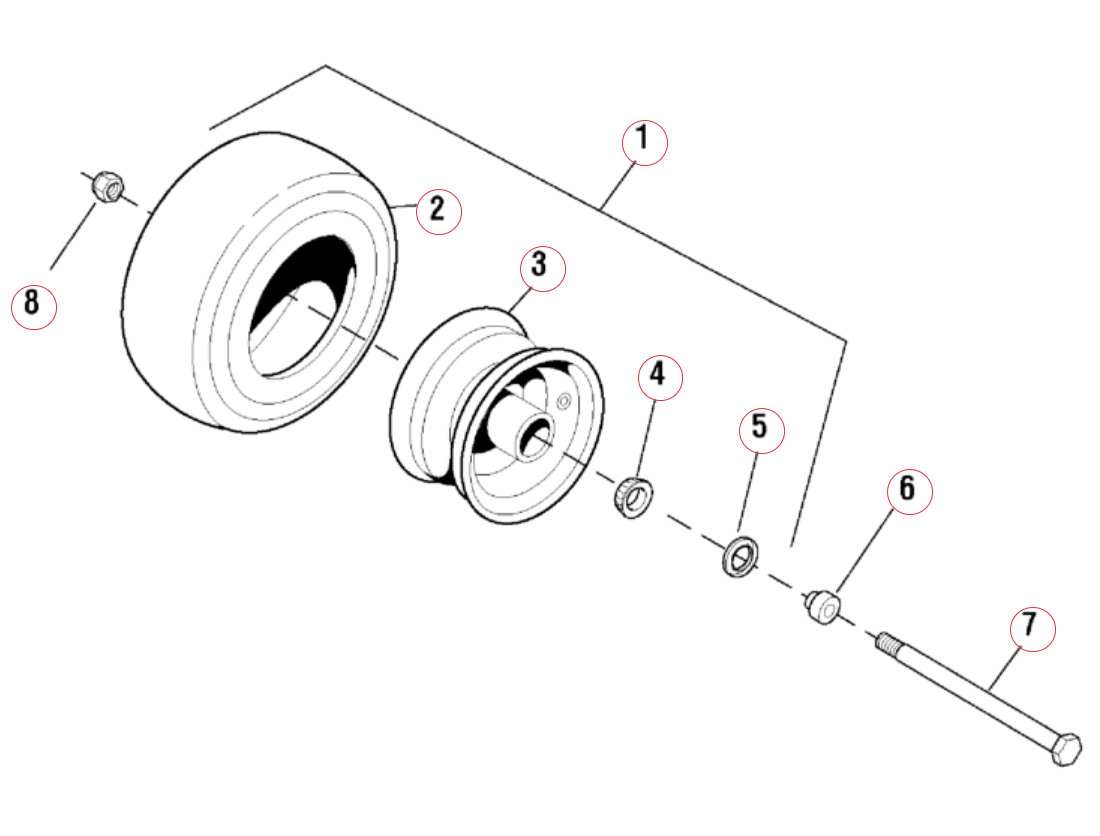

The tire on these is very similar to the Carlisle Reliance tire.  Tapered roller cone bearings are installed with seals.  This is #1 in the parts diagram breakdown screenshot photo.  It includes #2- #5: the tire, rim, bearings, and seals.  Comes fully assembled.

5023136X1YP Replaces Old Discontinued Part Numbers:

• 5023136
• 5023136YP
• 5023136X1


Specs:

• Tire Type: Semi-Pneumatic (Flat-Free) with Smooth Tread
• Tire Size: 13x6.50-6
• Hub Length: 6-3/4"
• Hub Bore (ID): 3/4" (Bearing ID)

Have a question about this product? Contact us for assistance and tell us you are looking at SKU 16658.
