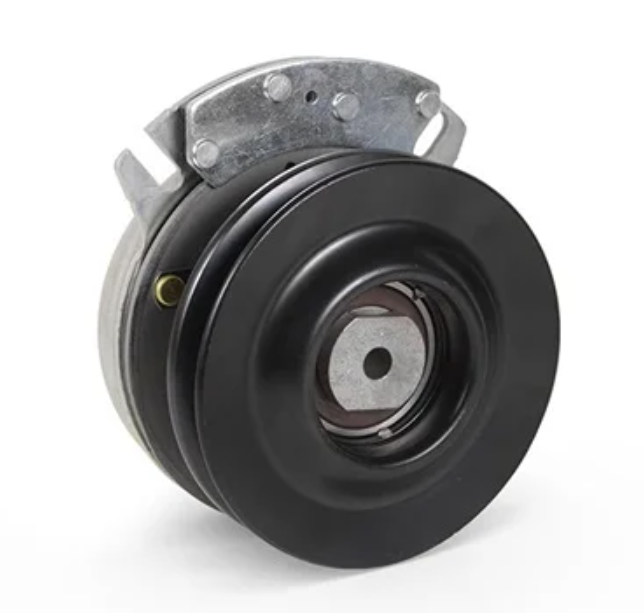

Wright PTO Clutch Only 71410030 & 71410031 (OEM 1 X 6.75 105FT-LB CCW,#I-5219-233)

OEM PTO Clutch Only for Wright part numbers 71410030 and 71410031.

This is the PTO Clutch, which does include D-spacer part number 71410007, as it is part of the clutch.  It does not include the wiring pigtail.

Please make sure your Wright mower uses part numbers 71410030 or 71410031 to ensure this is the correct clutch for your specific Wright mower model and serial number.

Replaces the OEM PTO Clutch Only for Wright Part Numbers:

• Wright 71410030
• Wright 71410031

Technical Specifications:

• Function: Clutch / Brake
• Voltage: 12 VDC
• Rated Torque (lb-ft): 105
• Rotation: CCW
• Current Draw (Amps): 3.93
• Resistance (Ohms): 3.05
• Pulley/Flange OD (in): 7.2
• Bore Diameter (in): 1
• Mounting: Standard
• Weight (lbs): 10.4
• D-drive Number: 807-0144 included with this clutch/brake


Have a question about this product? Contact us for assistance and tell us you are looking at SKU 5219-233
